93627-8020 - Molex

Description: Modular Connectors / Ethernet Connectors 8CORE MX MAG JK INV GIG

Download 93627-8020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

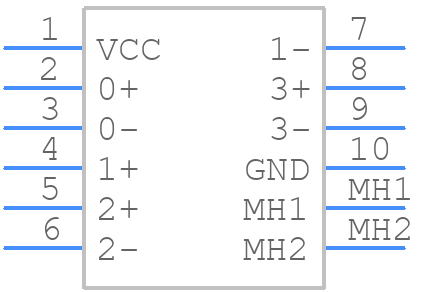

93627-8020 - Molex - PCB symbol
click to zoom
PCB Footprints

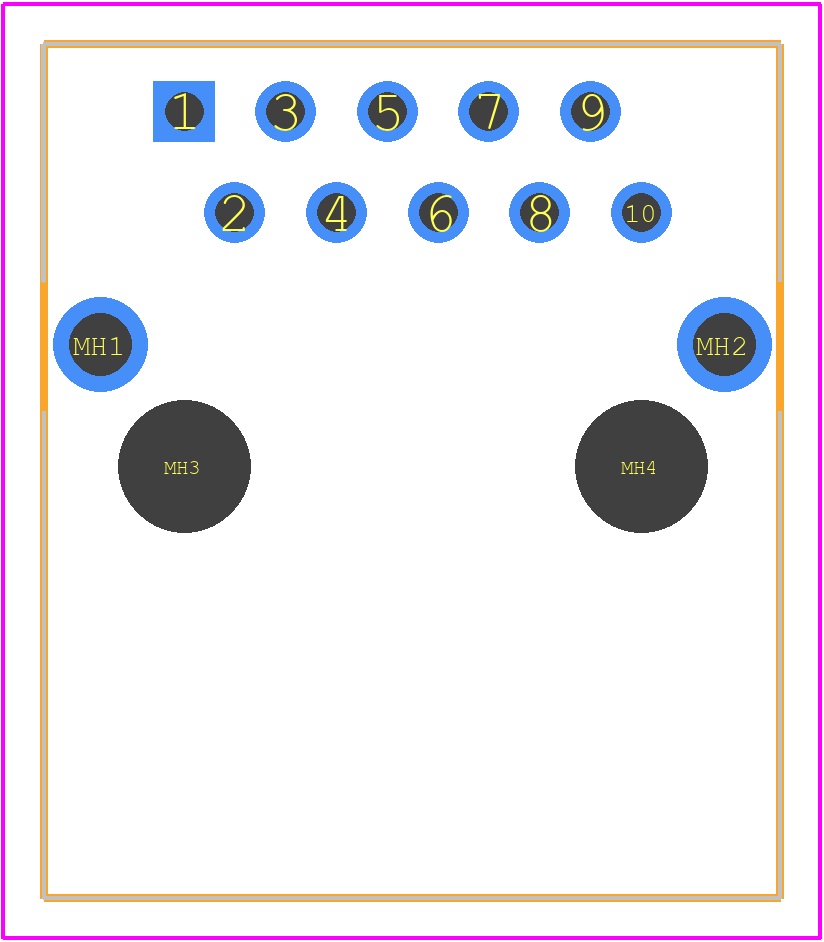

93627-8020 - Molex PCB footprint - Other - Other - 93627-8020-2
click to zoom
3D Models
93627-8020 - Molex - 3D model - Other - 93627-8020-2
click to zoom

93627-8020 Details

  • Manufacturer Part Number:

    93627-8020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Ireland, Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Molex

  • Additional Feature:

    SHIELDED

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

93627-8020 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the 93627-8020 connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 93627-8020 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
  • The maximum operating temperature for the 93627-8020 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • The 93627-8020 connector is designed to meet IP67 standards for ingress protection, but it's recommended to consult with a Molex representative for specific environmental requirements and to follow proper sealing and potting procedures.
