93635-8314 - Molex

Description: Modular Connectors / Ethernet Connectors 6CORE MX MAG FE INV

Download 93635-8314 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

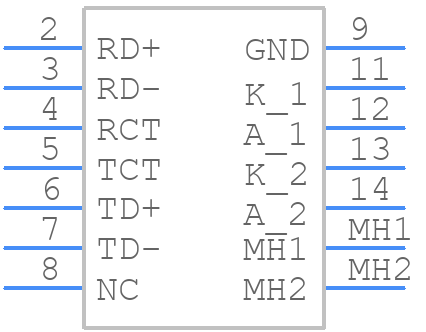

93635-8314 - Molex - PCB symbol
click to zoom
PCB Footprints

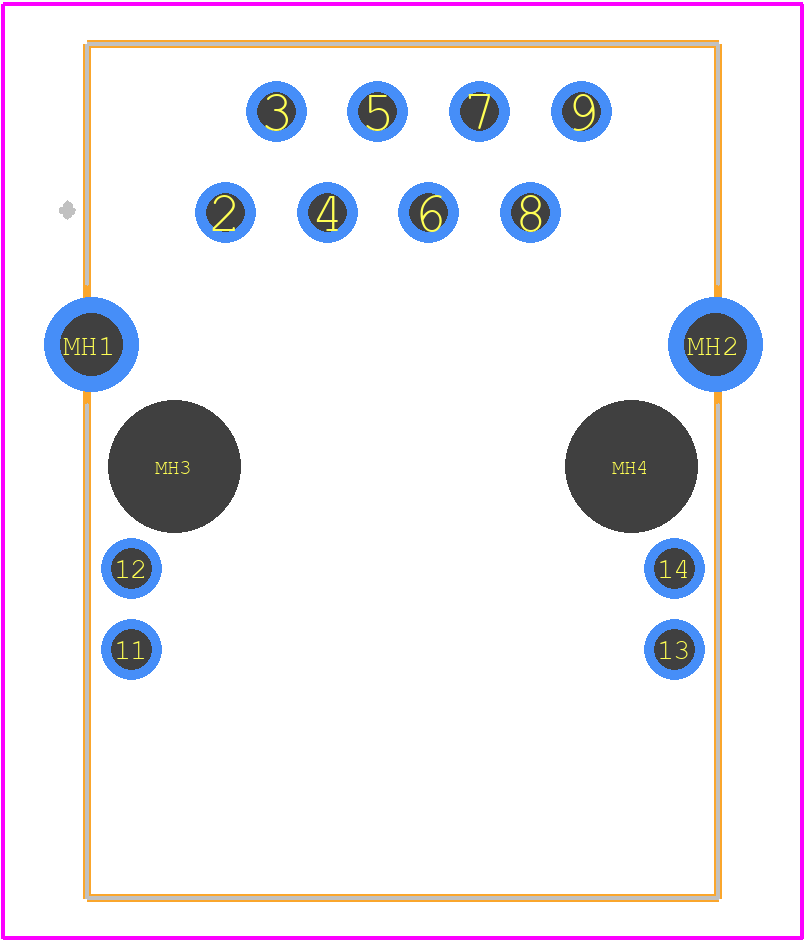

93635-8314 - Molex PCB footprint - Other - Other - 93635-8314-9
click to zoom
3D Models
93635-8314 - Molex - 3D model - Other - 93635-8314-9
click to zoom

93635-8314 Details

  • Manufacturer Part Number:

    93635-8314

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Ireland, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Molex

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

93635-8314 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 93635-8314 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 93635-8314 has a IP67 rating, making it suitable for outdoor use, but it's recommended to use additional sealing or protective measures to ensure reliability in harsh environments.
  • The 93635-8314 has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to use the specified wire gauge for optimal results.
