The maximum clock frequency for the 93AA46-I/SN is 1 MHz, as specified in the datasheet. However, it's recommended to operate at a lower frequency to ensure reliable operation and minimize power consumption.
To implement a reliable write cycle, ensure that the WP pin is low, the CS pin is low, and the clock frequency is within the recommended range. Also, follow the write cycle timing diagram in the datasheet, and use a valid write enable latch (WEL) signal.
The WP pin is the Write Protect pin, which allows you to protect the entire memory array from writes. When WP is high, the device is in a write-protected state, and any write attempts will be ignored. To use WP, connect it to VCC or a logic high level to enable write protection, or connect it to GND or a logic low level to disable write protection.
During power-up, ensure that the CS pin is high, and the WP pin is in its desired state (high for write protection or low for normal operation). During power-down, ensure that the CS pin is high, and the WP pin is high to prevent accidental writes. Follow the power-up and power-down timing diagrams in the datasheet for more information.
The 93AA46-I/SN is a 1Kbit EEPROM with a 1 MHz clock frequency, whereas other similar devices, such as the 93AA46A-I/SN, have a 2 MHz clock frequency. The 93AA46-I/SN also has a slightly different pinout and package option compared to other devices in the same family.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
93AA46-I/SN Overview

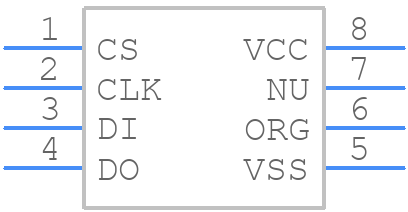

Use the download button to access the 93AA46-I/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 93AA4,
or try a keyword search, such as EEPROMs
