93AA56C-I/MS - Microchip

Description: 2K, 256 X 8 OR 128 X 16 SER EEPROM 1.8V

Download 93AA56C-I/MS Model

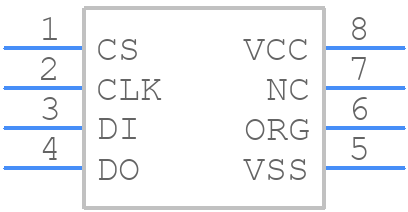

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
93AA56C-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 8-Lead Plastic MSOP
click to zoom
3D Models
93AA56C-I/MS - Microchip  - 3D model - Small Outline Packages - MS Package 8-Lead Plastic MSOP
click to zoom

93AA56C-I/MS Details

  • Manufacturer Part Number:

    93AA56C-I/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Alternate Memory Width:

    8

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Memory Density:

    2048 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    128 words

  • Number of Words Code:

    128

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128X16

  • Output Characteristics:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Ready/Busy:

    YES

  • Reverse Pinout:

    NO

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Serial Bus Type:

    MICROWIRE

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Toggle Bit:

    YES

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    6 ms

  • Write Protection:

    SOFTWARE
