94.12SMA - FINDER

Description: SOCKET & CLIP, PCB, DPCO, RELAY; Socket Mounting:Through Hole; Socket Terminals:Quick Connect; No. of Pins:9Pins; Current Rating:10A; Voltage Rating:250V; Product Range:-; SVHC:No SVHC (15-Jan-2019); Accessory Type:Socket / Clip RoHS Compliant: Yes

Download 94.12SMA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

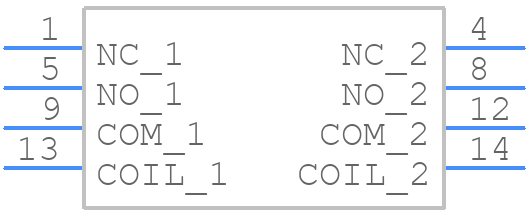

Symbol
94.12SMA - FINDER - PCB symbol
click to zoom

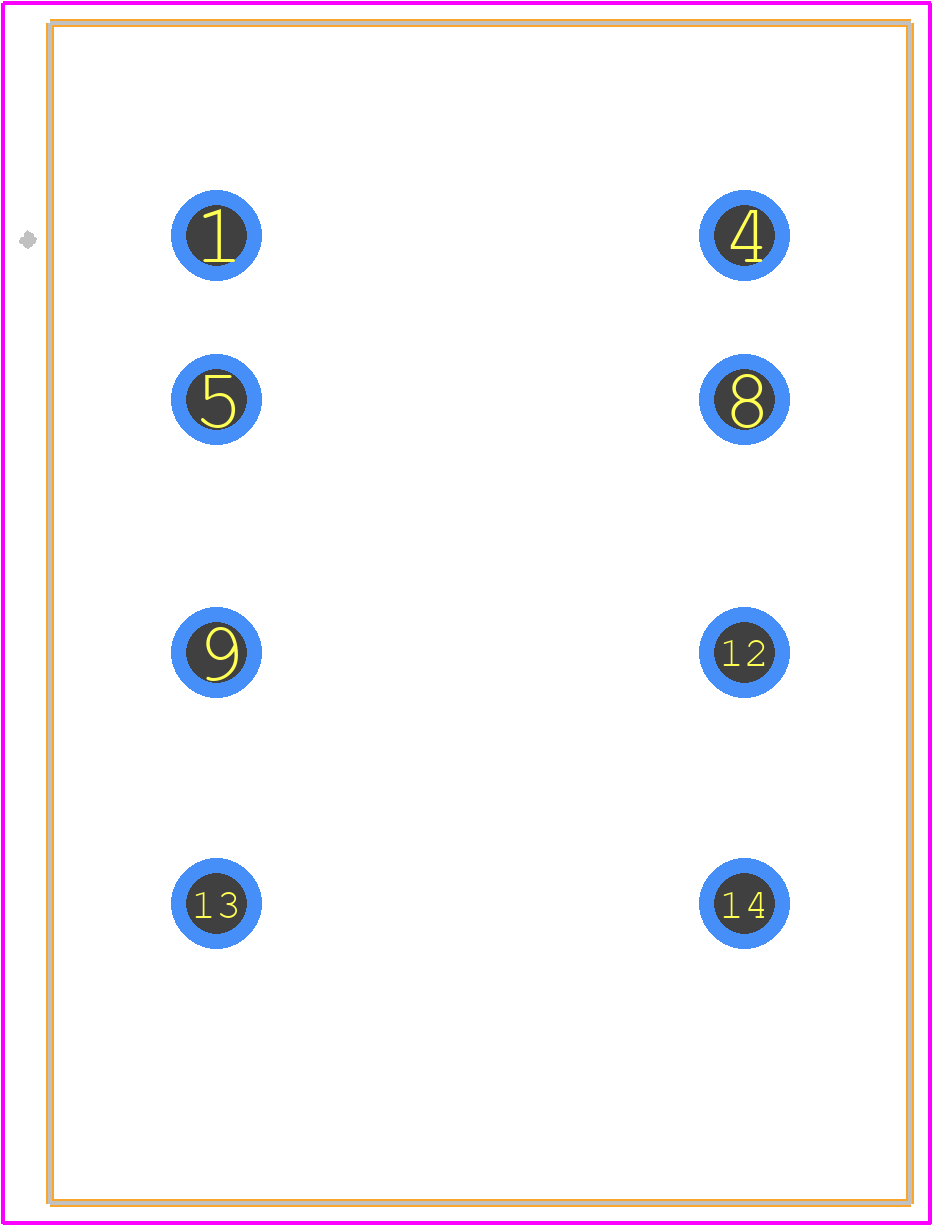

PCB Footprints
94.12SMA - FINDER PCB footprint - Other - Other - 94.12SMA-3
click to zoom
3D Models
94.12SMA - FINDER - 3D model - Other - 94.12SMA-3
click to zoom

94.12SMA Details

  • Manufacturer Part Number:

    94.12SMA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    FINDER SpA

  • YTEOL:

    8

  • Body Breadth:

    0.846 inch

  • Body Depth:

    0.453 inch

  • Body Length:

    1.161 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    SQ PIN-SKT

  • Current Rating:

    10 A

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Dielectric Withstanding Voltage:

    2000VAC V

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    11

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.16141732283464566/0.24803149606299213 mm

  • Terminal Pitch:

    13.2 mm

  • Termination Type:

    SOLDER

94.12SMA Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the 94.12SMA relay module is 20 Hz, but it's recommended to keep it below 10 Hz for optimal performance and relay lifespan.
  • The 94.12SMA relay module is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, it's not recommended to use it above 70°C for extended periods to ensure reliability and prevent premature aging.
  • The recommended wire gauge for connecting the 94.12SMA relay module is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). Using a wire gauge outside this range may affect the relay's performance or cause connection issues.
  • The 94.12SMA relay module is designed to operate in a relative humidity range of 5% to 95%. While it can tolerate some humidity, it's not recommended to use it in wet or submerged environments to prevent electrical shock or corrosion.
  • The 94.12SMA relay module does not have a minimum load requirement, but it's recommended to ensure the load is at least 10 mA to guarantee proper relay operation and prevent false triggering.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

94.12SMA Overview

Use the download button to access the 94.12SMA schematic symbol, PCB footprint, and 3D model.
