940-44-032-24-000000 - Mill-Max

Description: IC & Component Sockets 32 POS. TIN PLATED through-hole

Download 940-44-032-24-000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

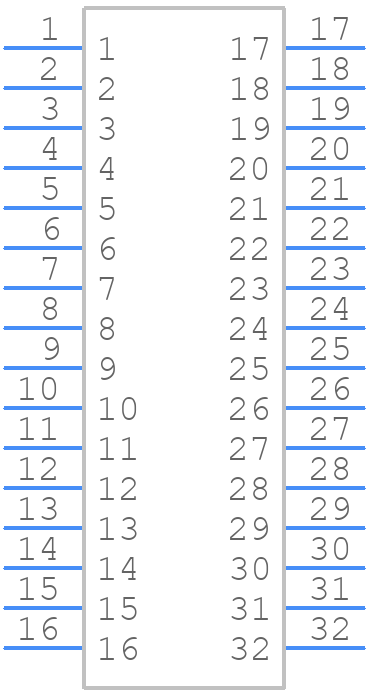

940-44-032-24-000000 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

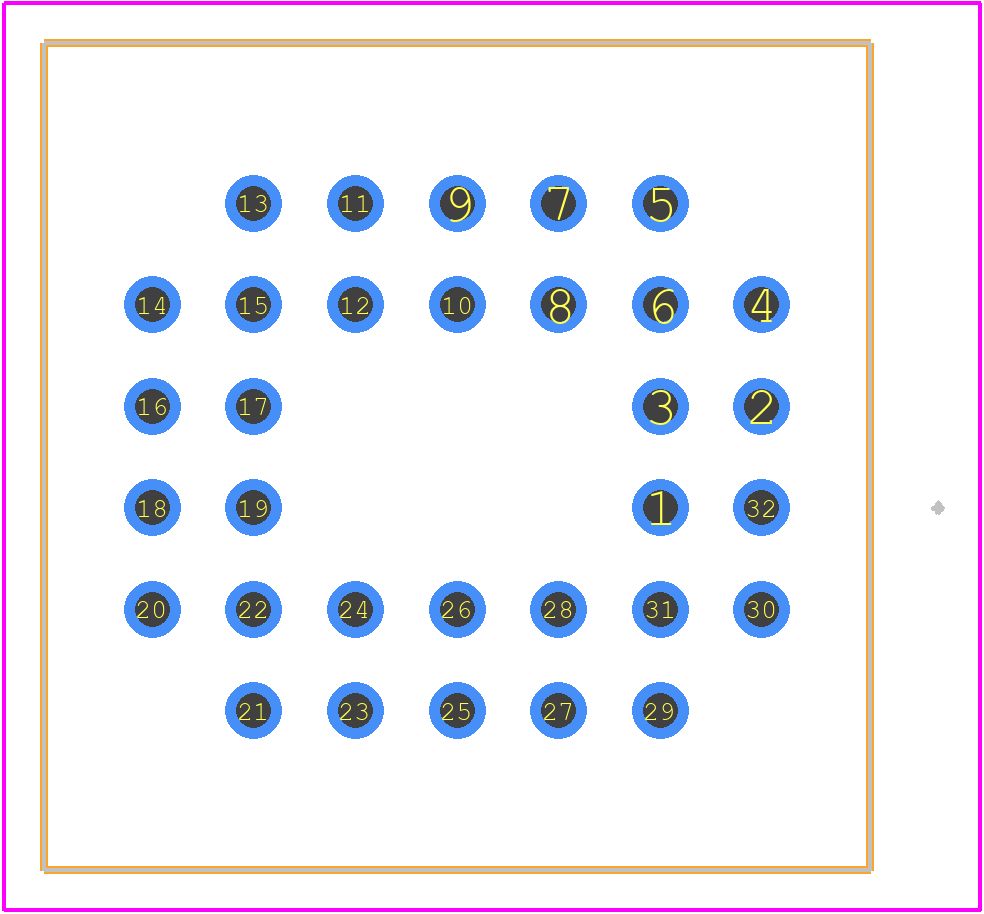

940-44-032-24-000000 - Mill-Max PCB footprint - Other - Other - 940-44-032-24-000000-2
click to zoom
3D Models
940-44-032-24-000000 - Mill-Max - 3D model - Other - 940-44-032-24-000000-2
click to zoom

940-44-032-24-000000 Details

  • Manufacturer Part Number:

    940-44-032-24-000000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PFOA, PFOS, ROHS AND REACH COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    6.83

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC32

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e3

  • Number of Contacts:

    32

940-44-032-24-000000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the 940-44-032-24-000000 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the 940-44-032-24-000000 connector is -55°C to 125°C (-69°F to 257°F), making it suitable for use in a wide range of environments.
  • Yes, the 940-44-032-24-000000 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The typical lead time for delivery of the 940-44-032-24-000000 connector is 6-8 weeks, but this may vary depending on the quantity and specific requirements of the order.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

940-44-032-24-000000 Overview

Use the download button to access the 940-44-032-24-000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 940-4, or try a keyword search, such as Sockets and Chip Carriers
