940-44-044-17-400004 - Mill-Max

Description: 44 (4 x 11) Pos PLCC Socket Tin Surface Mount

Download 940-44-044-17-400004 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

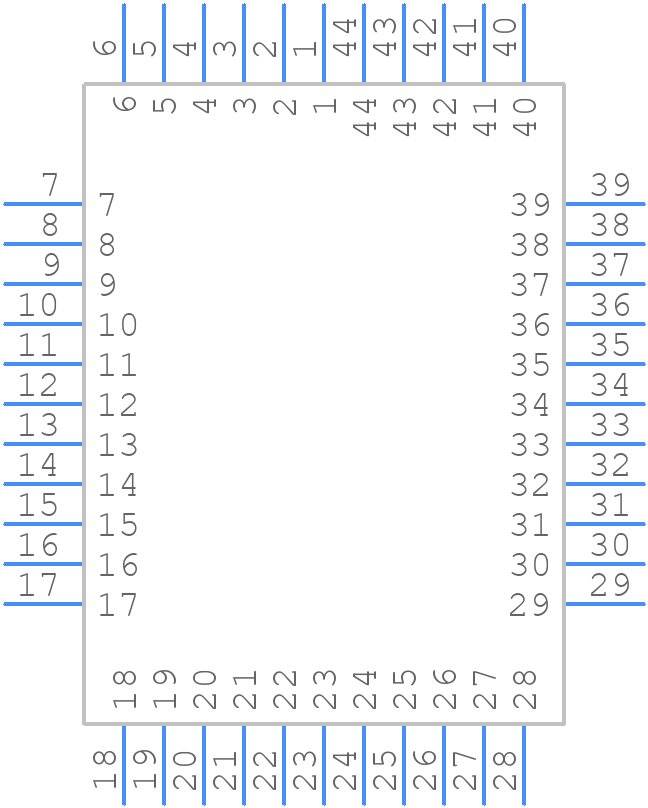

940-44-044-17-400004 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

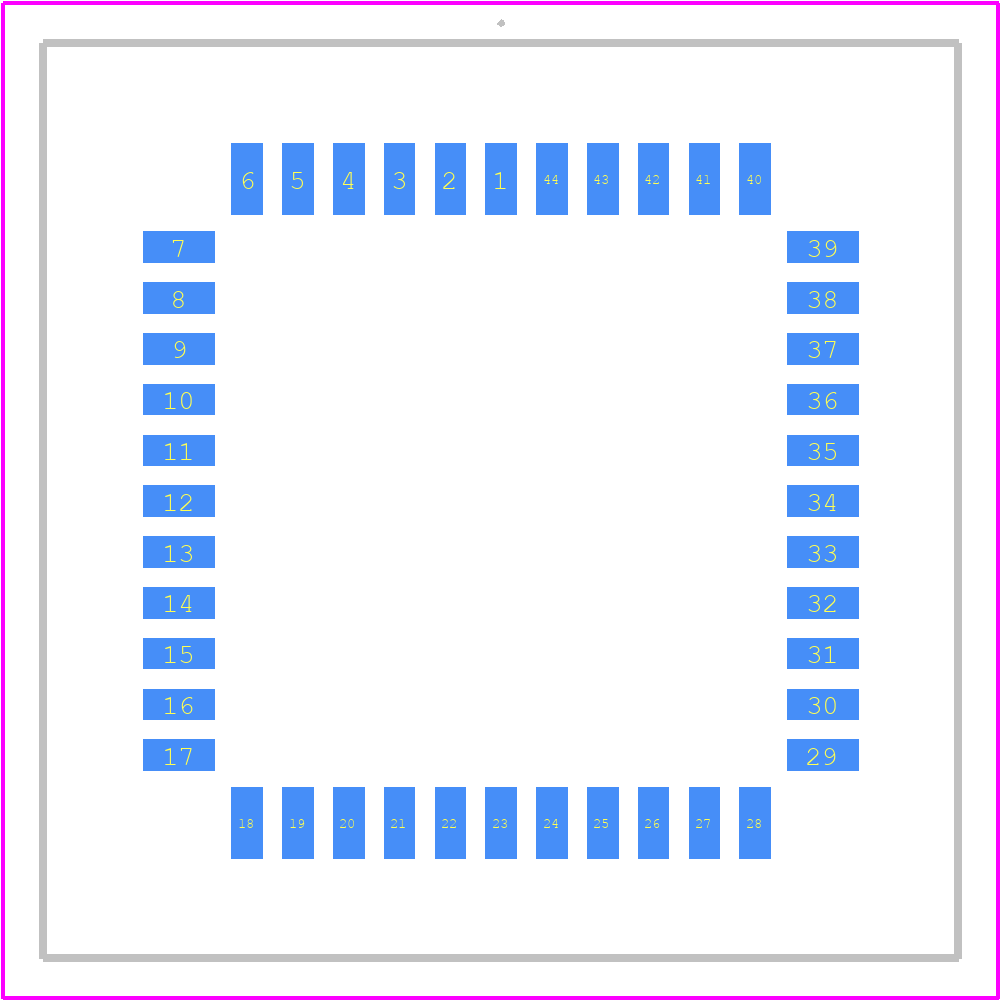

940-44-044-17-400004 - Mill-Max PCB footprint - Other - Other - 940-44-044-17-400004-2
click to zoom
3D Models
940-44-044-17-400004 - Mill-Max - 3D model - Other - 940-44-044-17-400004-2
click to zoom

940-44-044-17-400004 Details

  • Manufacturer Part Number:

    940-44-044-17-400004

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    0

  • Additional Feature:

    LOW PROFILE

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Housing Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • JESD-609 Code:

    e3

  • Number of Contacts:

    44
