942H-2C-5DS - HSINDA

Description: 942 Series RelayFEATURES ● UL, TUV & CQC safety approval. ● Standard type & High sensitivity type available. ● UL Class F (155℃) coil insulation type available. ● TV Rated (TV-3, TV-5 or TV-8) available. ● Heavy current up to 20Amps. ● Insulation distance: 8mm. ● Dielectric strength: 5,000 VAC. ● High sensitivity in small package. ● Nominal power 540mW～720mW. ● Operating power 300mW～410mW

Download 942H-2C-5DS Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 942H-2C-5DS model

Email notifications will be applied after download.

Send part feedback

Symbol

942H-2C-5DS - HSINDA - PCB symbol

PCB Footprints

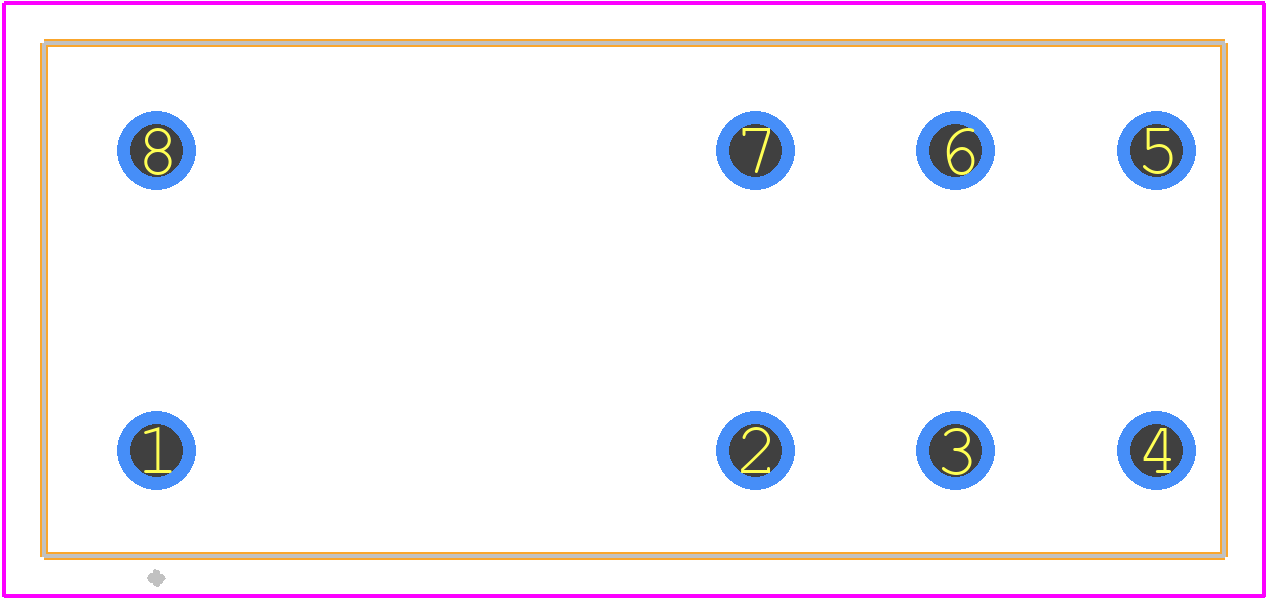

942H-2C-5DS - HSINDA PCB footprint - Other - Other - 942H-2C-5DS-2

3D Models

942H-2C-5DS - HSINDA - 3D model - Other - 942H-2C-5DS-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 942H-2C-5DS
Part Number 942H-2C-5DS
Manufacturer HSINDA
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 942H-2C-5DS-2
Released Date Jan 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

942H-2C-5DS Details

Manufacturer Part Number:
942H-2C-5DS
Manufacturer:
Hsinda Precision Co Ltd
