95-21SDRC/S530-A3/TR10 - Everlight

Description: Red 639nm LED Indication - Discrete 2V 2-SMD, Yoke Bend , 20mA , -40℃ ~ +85℃

Download 95-21SDRC/S530-A3/TR10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
95-21SDRC/S530-A3/TR10 - Everlight - PCB symbol
click to zoom
PCB Footprints

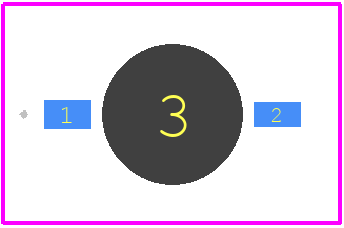

95-21SDRC/S530-A3/TR10 - Everlight PCB footprint - Other - Other - 2-SMD_2025-2.1
click to zoom

95-21SDRC/S530-A3/TR10 Details

  • Manufacturer Part Number:

    95-21SDRC/S530-A3/TR10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    7

  • Color:

    DEEP RED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.4 V

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Min:

    0.33 cd

  • Luminous Intensity-Nom:

    495.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    2.7 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    650 nm

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    1.9 mm

  • Surface Mount:

    YES

  • T-code:

    T-3/4

  • Viewing Angle:

    25 deg

95-21SDRC/S530-A3/TR10 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, the device is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels and take necessary precautions to prevent moisture ingress.
  • The maximum allowable voltage is 3.6V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Follow the manufacturer's recommended soldering and reflow profiles, and ensure that the device is handled in a static-safe environment to prevent damage from electrostatic discharge.
  • Yes, the device is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable applications.
