95.15.2 - FINDER

Description: FINDER - 95.15.2 - RELAY SOCKET, 250V, 10A, PC BOARD

Download 95.15.2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
95.15.2 - FINDER - PCB symbol
click to zoom
PCB Footprints

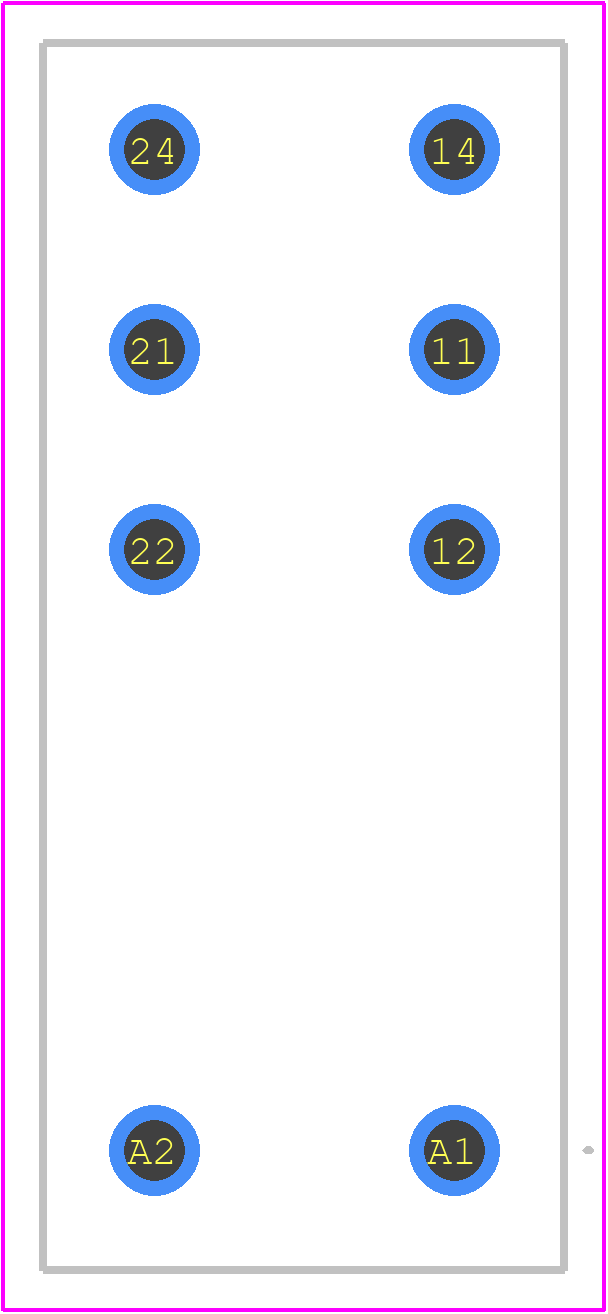

95.15.2 - FINDER PCB footprint - Other - Other - 95.15.2-3
click to zoom
3D Models
95.15.2 - FINDER - 3D model - Other - 95.15.2-3
click to zoom

95.15.2 Details

  • Manufacturer Part Number:

    95.15.2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    FINDER SpA

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: CSA; CUL; EAC; GOST; IMQ; UL

  • Body Breadth:

    0.512 inch

  • Body Depth:

    0.362 inch

  • Body Length:

    1.193 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Style:

    SQ PIN-SKT

  • Current Rating:

    10 A

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Dielectric Withstanding Voltage:

    6000VAC V

  • Mating Contact Pitch:

    0.197 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.29488188976377955 mm

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

95.15.2 Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the 95.15.2 relay module is 30 operations per minute.
  • Yes, the 95.15.2 relay module can be used with a DC power supply, but it's recommended to use a DC power supply with a voltage range of 12V to 24V.
  • The minimum load requirement for the 95.15.2 relay module is 5mA at 5V DC.
  • The 95.15.2 relay module is designed to operate within a temperature range of -40°C to 85°C. It's not recommended for high-temperature applications above 85°C.
  • The 95.15.2 relay module is designed to operate in a relative humidity range of 5% to 95%. However, it's recommended to take precautions to prevent moisture ingress in humid environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

95.15.2 Overview

Use the download button to access the 95.15.2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95.15, or try a keyword search, such as Sockets and Chip Carriers
