Part Image

95009-7667 - Molex

Description: Modular Connectors / Ethernet Connectors STD JACK RA 6/6 NO RIB

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

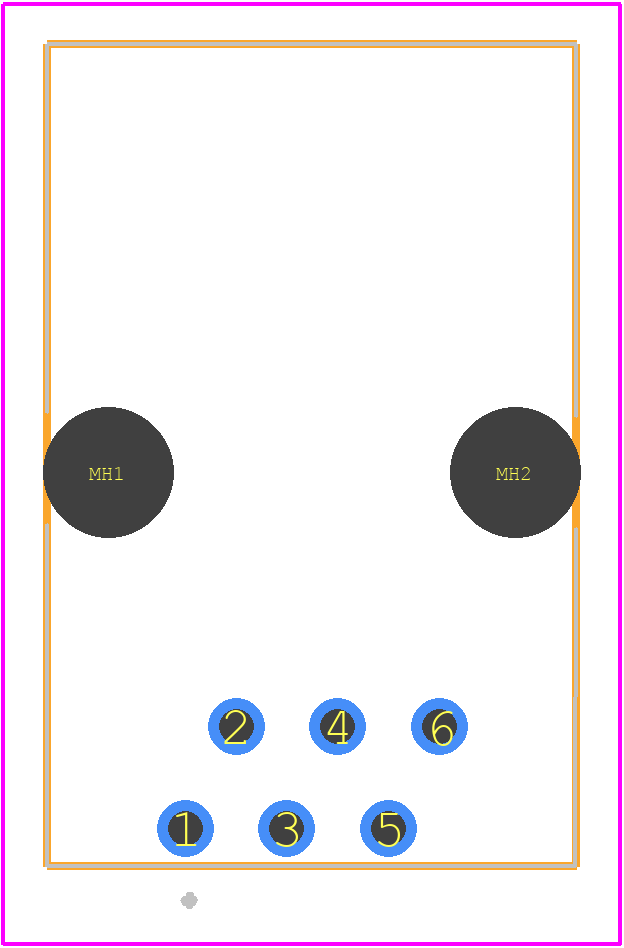

95009-7667 - Molex PCB footprint - Other - Other - 95009-7667-2
click to zoom

3D Models

95009-7667 - Molex  - 3D model - Other - 95009-7667-2
click to zoom

95009-7667 Details

  • Manufacturer Part Number:

    95009-7667

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Factory Lead Time:

    29 Weeks, 4 Days

  • Manufacturer:

    Molex

  • Risk Rank:

    1.78

  • Samacsys Modified On:

    2022-06-14 20:54:33

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.59 inch

  • Body Depth:

    0.81 inch

  • Body Length:

    0.629 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    TELCOM, MODULAR

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    1000 Cycles

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    CSA, UL

  • Reliability:

    COMMERCIAL

  • Subcategory:

    Telecom and Datacom Connectors

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6
