950434-5002-AR - 3M

Description: CONN RCPT 34P 0.079 GOLD PCB R/A

Download 950434-5002-AR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
950434-5002-AR - 3M - PCB symbol
click to zoom
PCB Footprints

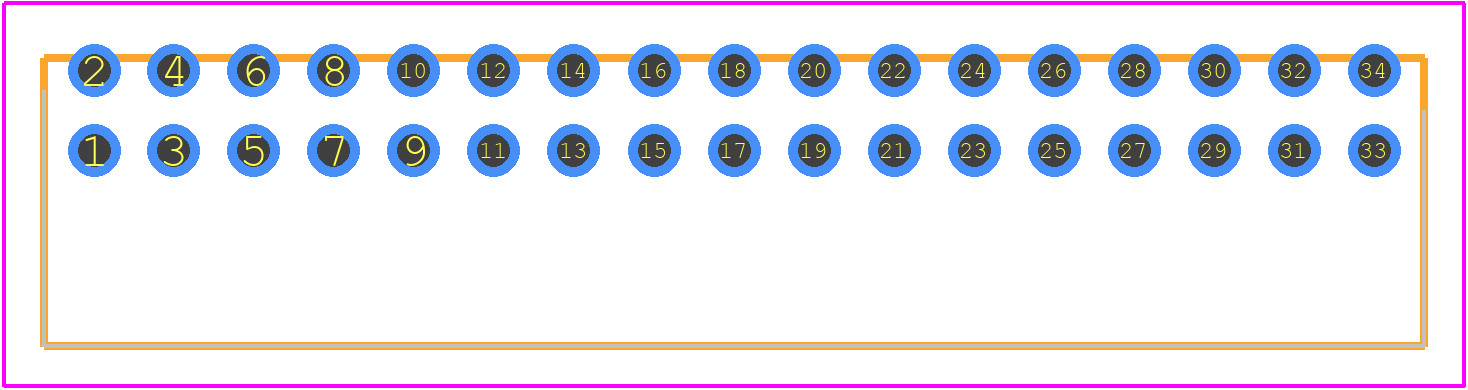

950434-5002-AR - 3M PCB footprint - Other - Other - 950434-5002-AR-5
click to zoom
3D Models
950434-5002-AR - 3M - 3D model - Other - 950434-5002-AR-5
click to zoom

950434-5002-AR Details

  • Manufacturer Part Number:

    950434-5002-AR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    8

  • Additional Feature:

    3M

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL (100)

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

950434-5002-AR Frequently Asked Questions (FAQs)

  • The recommended torque is typically between 0.5 to 1.5 Nm (7 to 21 in-lbs), but it's best to consult the specific application notes or contact 3M support for precise guidance.
  • Yes, the 950434-5002-AR is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and screw torque to maintain reliability. Consult 3M's application notes for specific guidance on vibration testing and requirements.
  • The 950434-5002-AR has a rated operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application's temperature requirements and potential thermal stresses on the connector.
  • The 950434-5002-AR is designed for standard PCB thicknesses (1.57 mm or 0.062 in). Using it with non-standard thicknesses may require custom design or modifications, which should be discussed with 3M support or a qualified engineer.
  • The 950434-5002-AR is rated for a minimum of 500 mating cycles, but this can vary depending on the specific application, environmental conditions, and connector maintenance. Consult 3M's application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

950434-5002-AR Overview

Use the download button to access the 950434-5002-AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95043, or try a keyword search, such as Headers and Edge Type Connectors
