953130-2 - TE Connectivity

Description: Vertical, Wire-to-Board, 12 Position, 2 Row, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, 7.5A Contact Current Rating (Max), Signal

Download 953130-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
953130-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

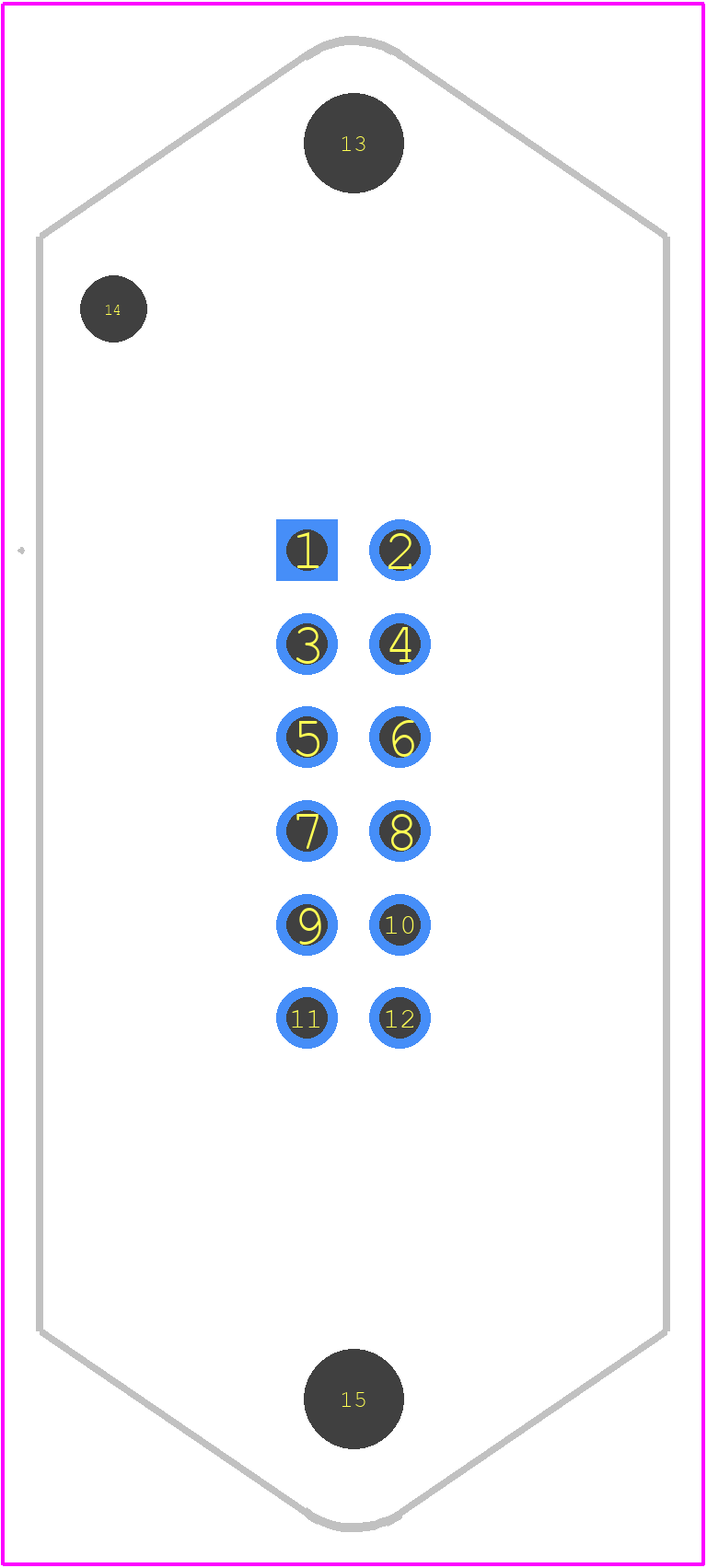

953130-2 - TE Connectivity PCB footprint - Other - Other - 953130-2-2
click to zoom
3D Models
953130-2 - TE Connectivity - 3D model - Other - 953130-2-2
click to zoom

953130-2 Details

  • Manufacturer Part Number:

    953130-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.669 inch

  • Body Length:

    1.591 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

953130-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 953130-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 953130-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial to automotive and more.
  • Yes, the 953130-2 connector can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's essential to follow the recommended wire stripping lengths and crimping procedures to ensure reliable connections.
  • The 953130-2 connector has a sealed design that provides protection against moisture and humidity. It also meets the IEC 60529 IP67 standard for ingress protection. However, it's essential to follow the manufacturer's guidelines for use in environments with exposure to chemicals.
