- Part Number 953236-1
- Manufacturer TE Connectivity
- Pin Count 26
- Part Category Connector
- Package Category Other

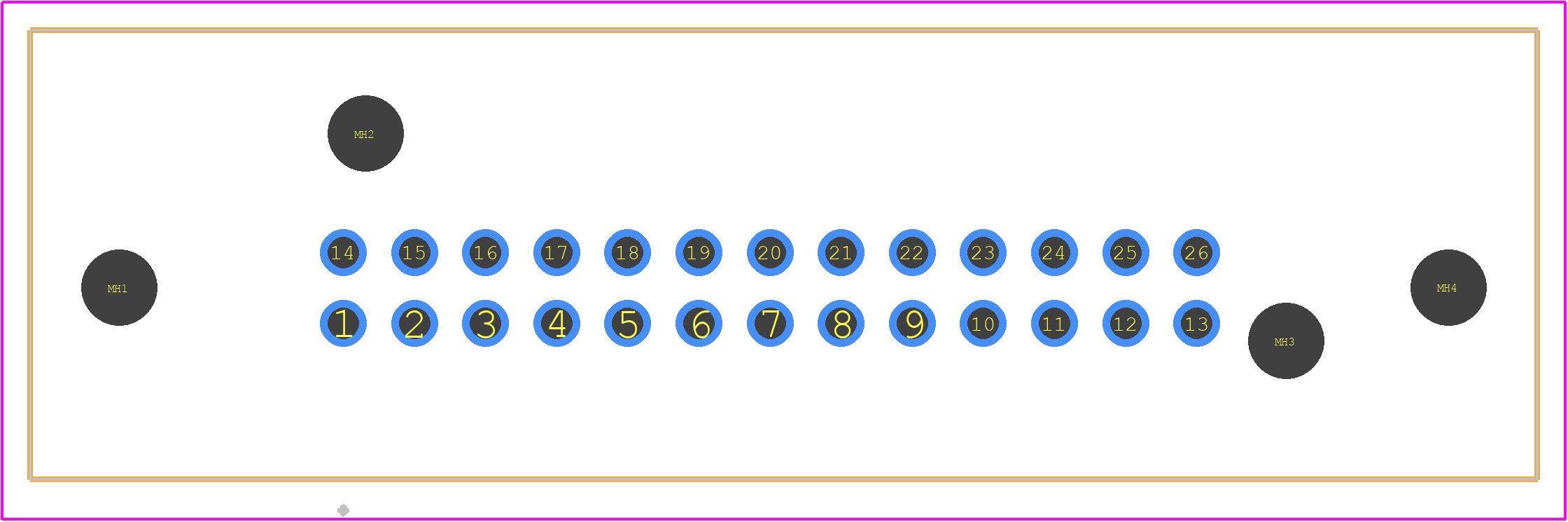

- Footprint Name Other - 953236-1-4
- Released Date Aug 17, 2019
- Last Modified Date Dec 11, 2024 3:56 PM UTC
- Pinout / Pin List Click Here (Member Only)
953236-1 Details
-
Manufacturer Part Number:
953236-1
-
Brand Name:
AMP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
17 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
3
-
Board Mounting Option:
BOARD LOCK
-
Body Breadth:
0.63 inch
953236-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
-
Yes, the 953236-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373. However, it's recommended to perform additional testing and validation to ensure the connector meets the specific requirements of your application.
-
The operating temperature range for the 953236-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this range to maintain its performance and reliability.
-
The 953236-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not recommended for use in applications where it will be exposed to chemicals or continuous water immersion. Additional protection or sealing may be required for such applications.
-
The 953236-1 connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
