953442-1 - TE Connectivity

Description: MQS, Automotive Headers, 6 Position, 2.54mm [.1in] Centerline, Horizontal, 2 Row, Black, Through Hole - Solder, Tin (Sn), Printed Circuit Board

Download 953442-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
953442-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

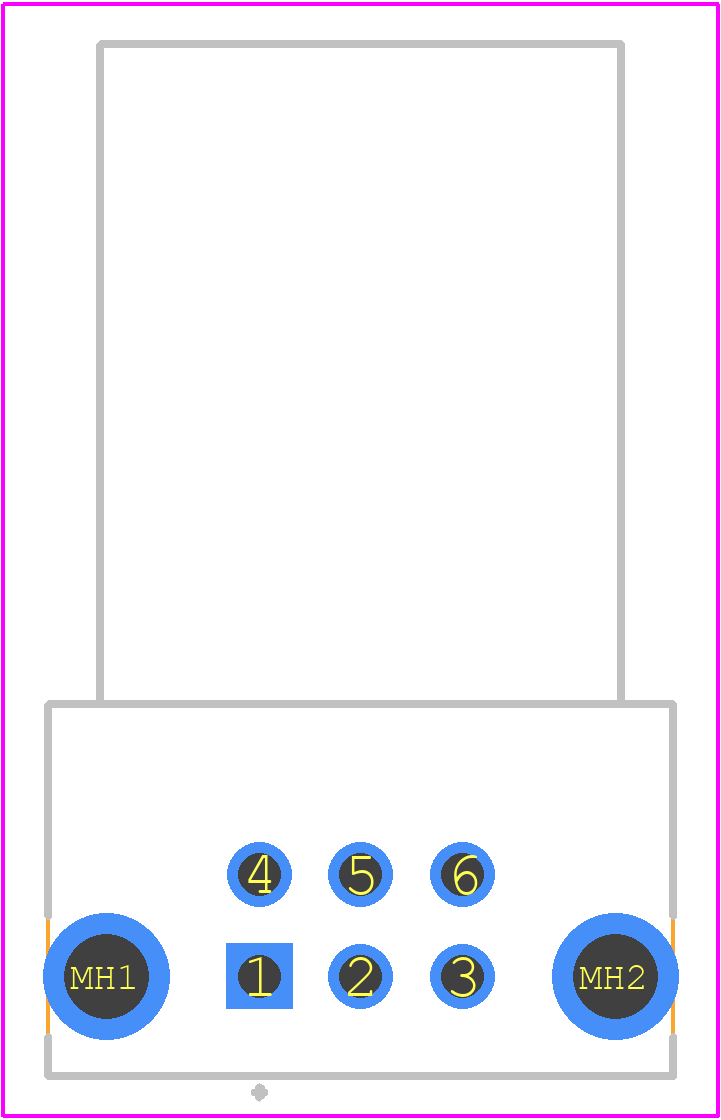

953442-1 - TE Connectivity PCB footprint - Other - Other - 953442-1-2
click to zoom
3D Models
953442-1 - TE Connectivity - 3D model - Other - 953442-1-2
click to zoom

953442-1 Details

  • Manufacturer Part Number:

    953442-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    32 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.02 inch

  • Body Length:

    0.661 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Length:

    0.137 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

953442-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 953442-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 953442-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 953442-1 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 953442-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

953442-1 Overview

Use the download button to access the 953442-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95344, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
