- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 953442-2
- Part Number 953442-2
- Manufacturer TE Connectivity
- Pin Count 6
- Part Category Connector
- Package Category Other
- Footprint Name Other - 953442-2-2
- Released Date Feb 22, 2024
- Last Modified Date Apr 10, 2024 5:23 AM UTC
- Pinout / Pin List Click Here (Member Only)
953442-2 Details
-
Manufacturer Part Number:
953442-2
-
Brand Name:
TE Connectivity
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
54 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
3
-
Body Breadth:
1.02 inch
-
Body Depth:
0.917 inch
953442-2 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
-
Yes, the 953442-2 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 953442-2 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
-
The 953442-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
-
The 953442-2 connector is designed to be compatible with other TE Connectivity products, such as their AMPSEAL connectors. However, compatibility with third-party components should be verified through testing or consultation with the manufacturer to ensure reliable connections and performance.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
953442-2 Overview

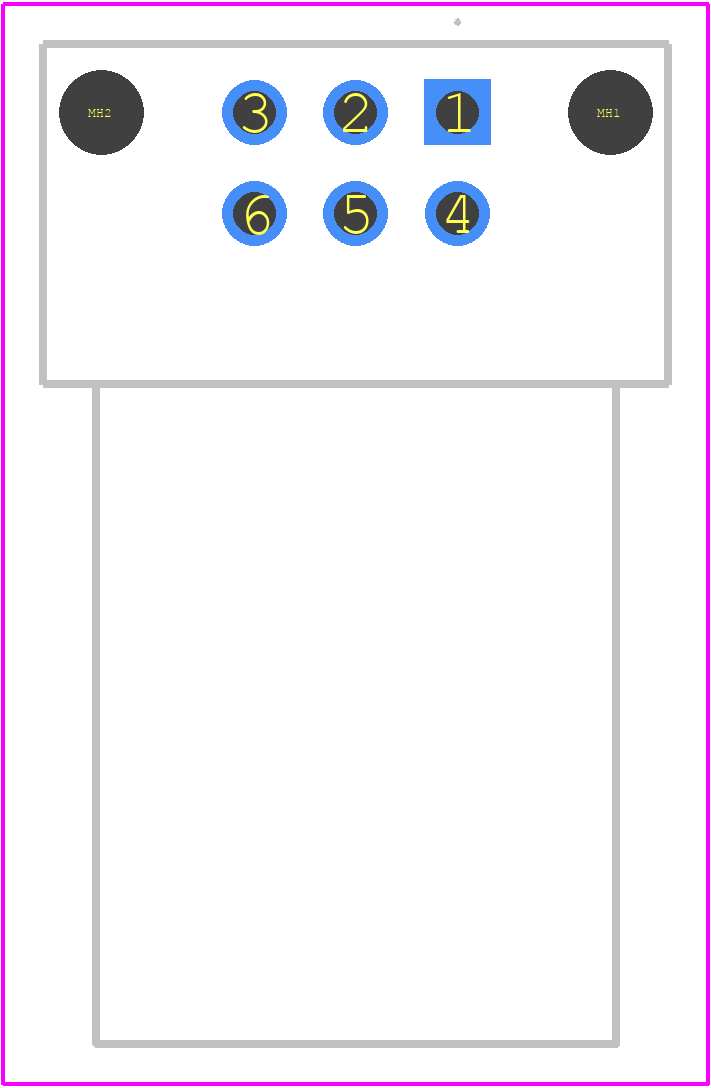

Use the download button to access the 953442-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95344,
or try a keyword search, such as Combination Line Connectors
