953486-1 - TE Connectivity

Description: Horizontal, Wire-to-Board, 32 Position, 2 Row, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, 7.5A Contact Current Rating (Max), Signal

Download 953486-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

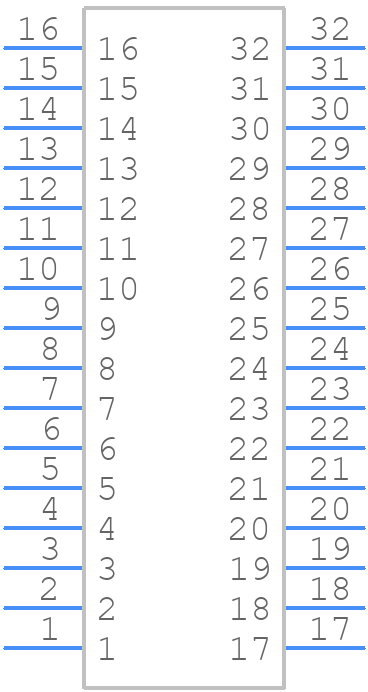

953486-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

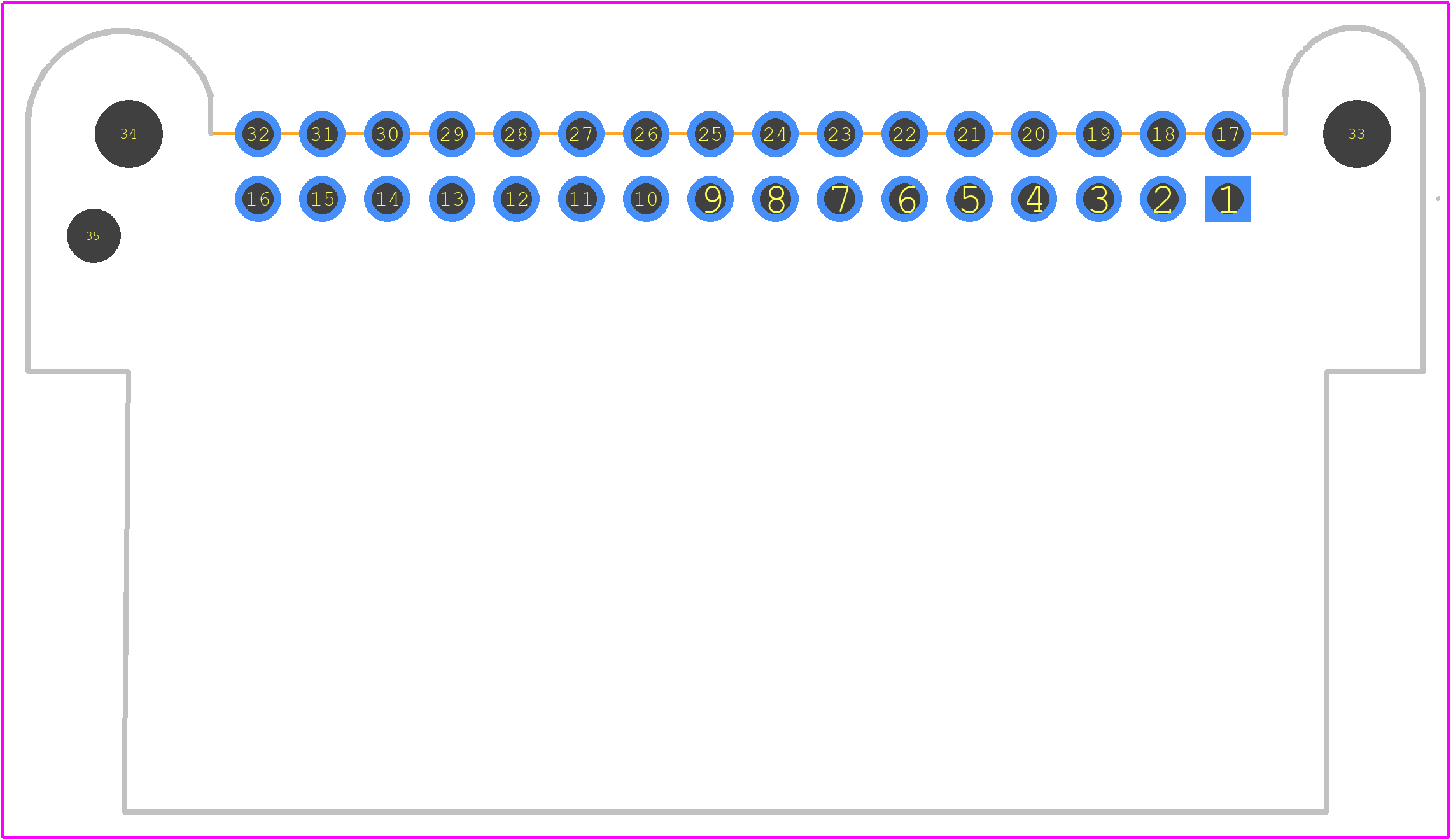

953486-1 - TE Connectivity PCB footprint - Other - Other - 953486-1-3
click to zoom
3D Models
953486-1 - TE Connectivity - 3D model - Other - 953486-1-3
click to zoom

953486-1 Details

  • Manufacturer Part Number:

    953486-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    27 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.079 inch

  • Body Depth:

    1.079 inch

  • Body Length:

    2.157 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94-HB

953486-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 953486-1 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with a TE Connectivity representative for specific application guidance.
  • The operating temperature range for the 953486-1 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 953486-1 connector is suitable for outdoor use, but it's recommended to follow TE Connectivity's guidelines for environmental sealing and to consult with a TE Connectivity representative for specific application guidance.
  • It's not recommended to use the 953486-1 connector with a different wire gauge than recommended, as it may affect the connector's performance and reliability. Consult with a TE Connectivity representative for specific guidance on wire gauge selection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

953486-1 Overview

Use the download button to access the 953486-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 95348, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
