Part Image

9535T - Monzite

Description: 9535 PIN Diode Switch Driver is a high-speed, single-channel differential driver with ±15 V swing, >1 A peak output, and 5 MHz PRR, designed for RF PIN diode switching; compatible with TTL/CMOS logic, housed in a TO-12 hermetic package, and directly replaces the DH0035/DH0035C for harsh, high-temp microwave environments.

Download 9535T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 9535T model

Email notifications will be applied after download.

Send part feedback

Symbol

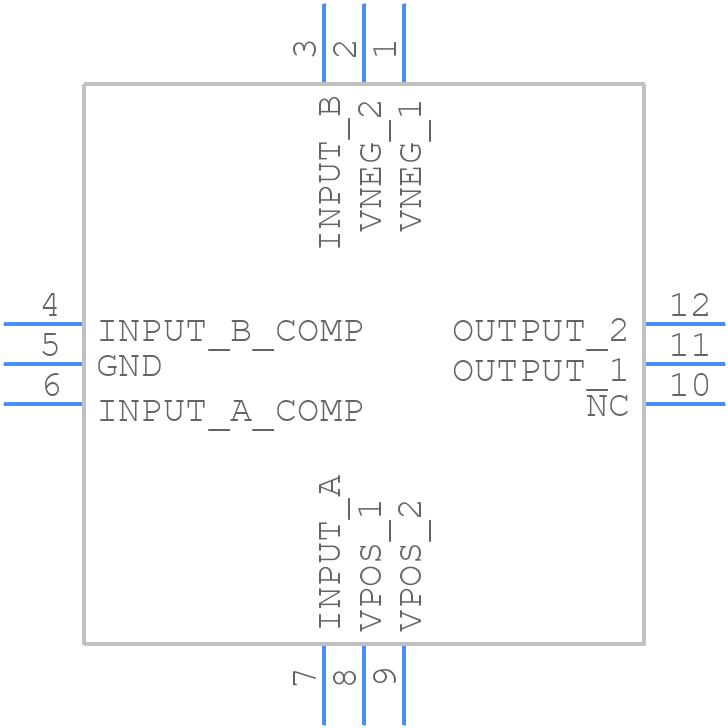

9535T - Monzite - PCB symbol

PCB Footprints

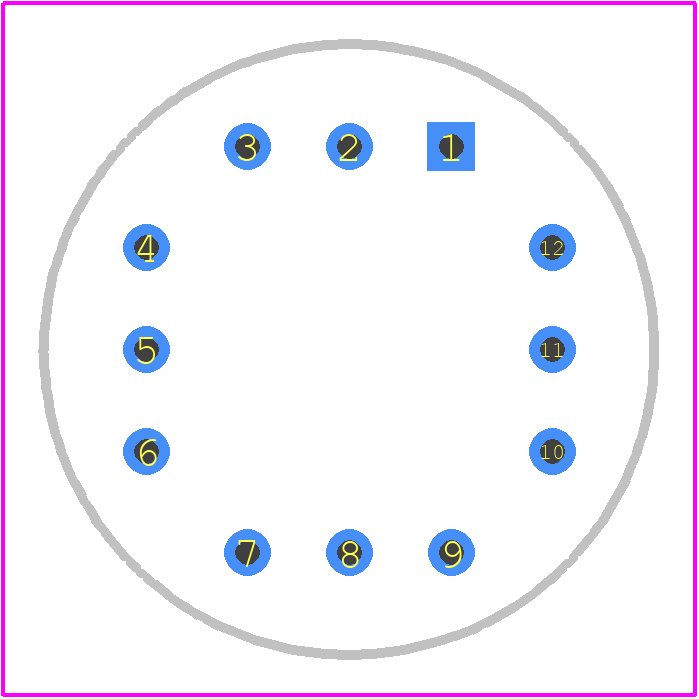

9535T - Monzite PCB footprint - Other - Other - 9535T

3D Models

9535T - Monzite - 3D model - Other - 9535T

Datasheet Download Datasheet
Stock & Prices Price & Stock for 9535T
Part Number 9535T
Manufacturer Monzite
Pin Count 12
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 9535T
Released Date Jun 29, 2025
Last Modified Date Jun 29, 2025 10:17 AM UTC
Pinout / Pin List Click Here (Member Only)

9535T Details

Manufacturer Part Number:
9535T
Manufacturer:
Monzite

Trust Checks

Expert Contribution

System Verified

Community Approved

9535T Overview

Use the download button to access the 9535T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Combination Line Connectors

Parts related to 9535T

Showing 0 results
