The recommended torque for mating and unmating the 961224-5604-AR connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs). However, it's recommended to consult the 3M Interconnect application notes or contact their technical support for specific guidance.
The 961224-5604-AR connector is designed to meet the requirements of various industries, including aerospace and defense, which often involve high-vibration environments. However, it's essential to consult the datasheet and application notes to ensure the connector meets the specific vibration requirements of your application.
The 961224-5604-AR connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand exposure to various chemicals. However, it's crucial to consult the datasheet and application notes to ensure the connector meets the specific environmental requirements of your application.
The recommended cleaning process for the 961224-5604-AR connector typically involves using a soft-bristled brush and a mild solvent, such as isopropyl alcohol or a 3M-approved cleaning solution. Avoid using harsh chemicals or abrasive materials that can damage the connector's surfaces.
Yes, it's recommended to handle the 961224-5604-AR connector with care to prevent damage to the contacts or housing. Store the connector in a dry, clean environment, away from direct sunlight and extreme temperatures. Avoid bending or flexing the connector during storage or handling.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
961224-5604-AR Overview

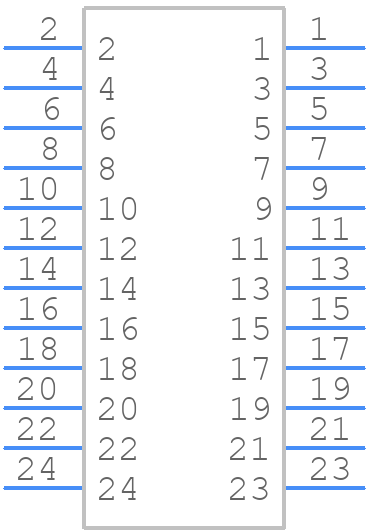

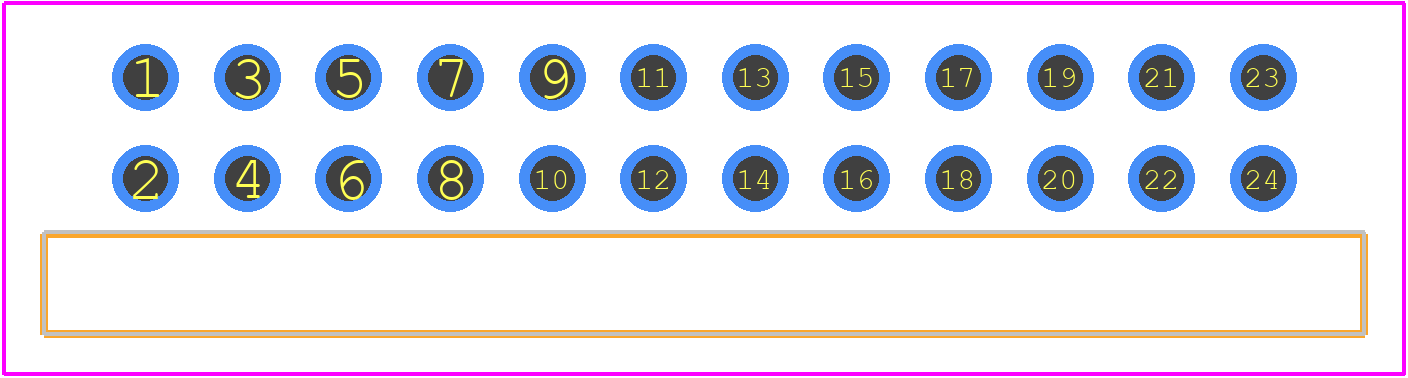

Use the download button to access the 961224-5604-AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 96122,
or try a keyword search, such as Headers and Edge Type Connectors
