963357-6 - TE Connectivity

Description: Timer Connector System, PCB Mount Header, Vertical, Wire-to-Board, 4 Position, .22 in [5.6 mm] Centerline, Fully Shrouded, Silver (Ag)

Download 963357-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
963357-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

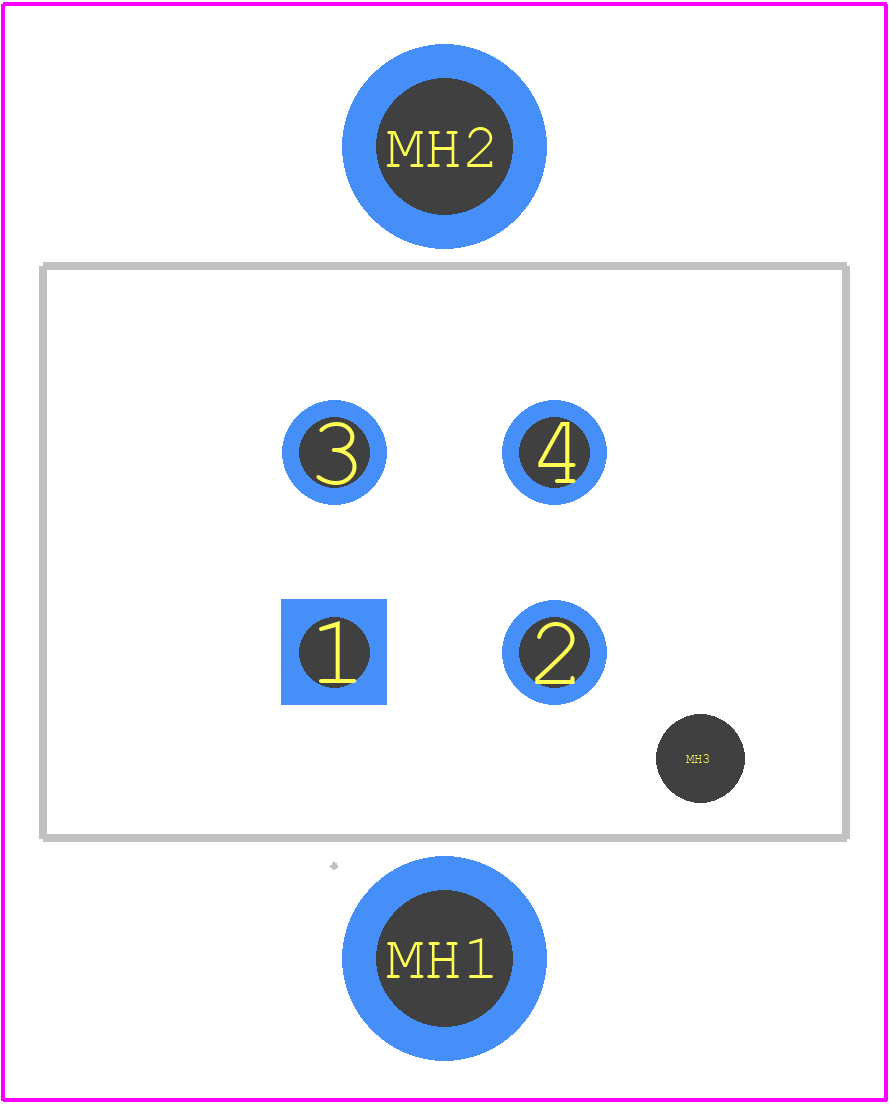

963357-6 - TE Connectivity PCB footprint - Other - Other - 963357-6-3
click to zoom
3D Models
963357-6 - TE Connectivity - 3D model - Other - 963357-6-3
click to zoom

963357-6 Details

  • Manufacturer Part Number:

    963357-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    41 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.787 inch

  • Body Depth:

    0.72 inch

  • Body Length:

    1.358 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    929504-1

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Shell Material:

    GLASS FILLED POLYCARBONATE/POLYBUTYLENE TEREPHTHALATE

  • Terminal Pitch:

    5.6 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

963357-6 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 963357-6 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 963357-6 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 963357-6 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 963357-6 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.
