966140-4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

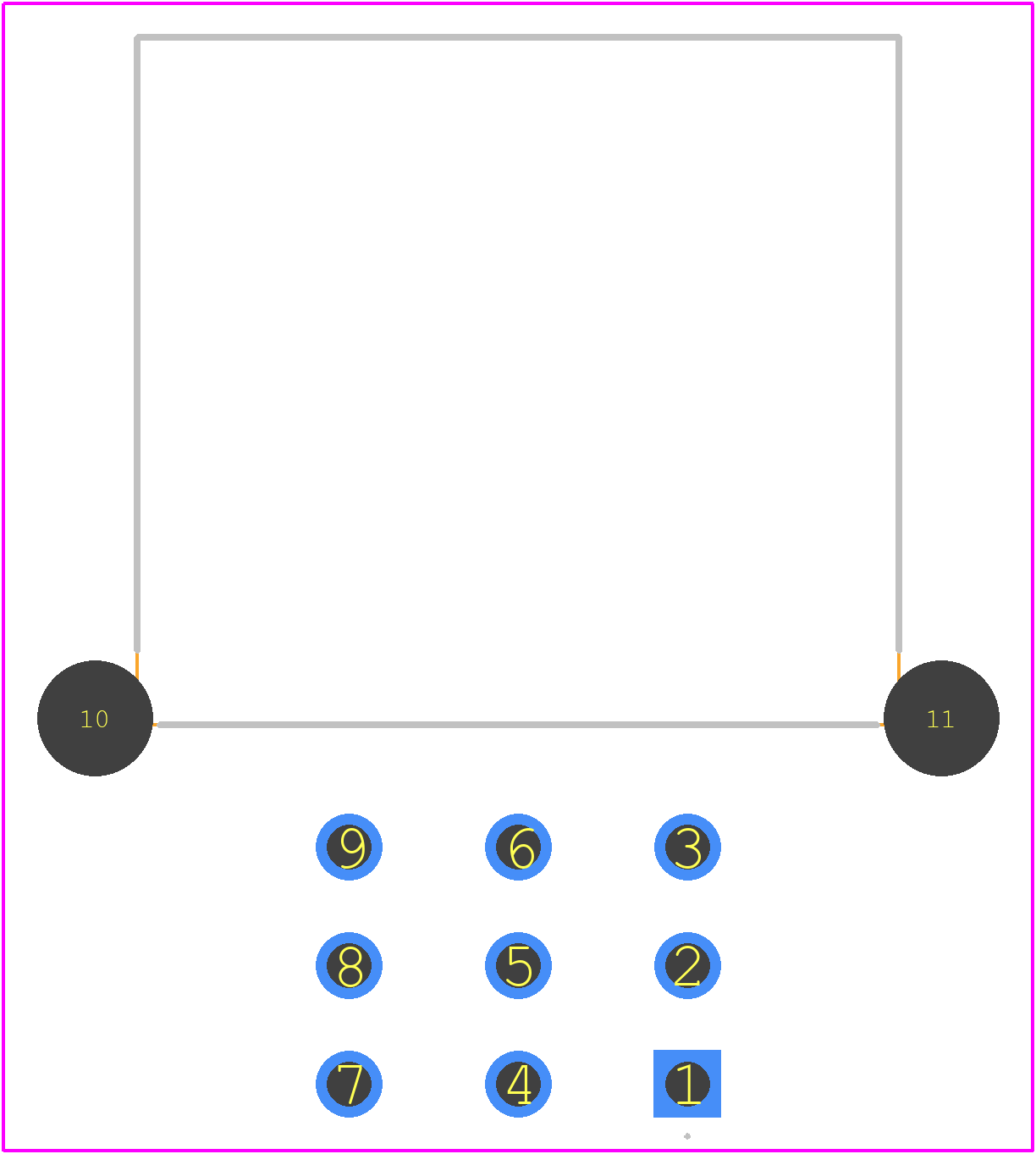

966140-4 - TE Connectivity PCB footprint - Other - Other - 966140-4-5

click to zoom

3D Models

966140-4 - TE Connectivity - 3D model - Other - 966140-4-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 966140-4
Part Number 966140-4
Manufacturer TE Connectivity
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - 966140-4-5
Released Date Sep 18, 2024
Last Modified Date Dec 15, 2024 11:20 PM UTC
Pinout / Pin List Click Here (Member Only)

966140-4 Details

Manufacturer Part Number:
966140-4
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
27 Weeks, 4 Days
Manufacturer:
TE Connectivity
Body Breadth:
0.791 inch
Body Length:
1.221 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
PANEL
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
24 V
Terminal Pitch:
3.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
9

966140-4 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 966140-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
The operating temperature range for the 966140-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
Yes, the 966140-4 connector is designed to operate in harsh environments. It has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in outdoor or industrial applications.
Yes, the 966140-4 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. It's essential to ensure compatibility before selecting a connector for your application.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

966140-4 Overview

Use the download button to access the 966140-4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 96614, or try a keyword search, such as Combination Line Connectors
