The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 966224-2000-AR-PR connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
The 966224-2000-AR-PR connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand moderate humidity levels. However, it's essential to follow the recommended operating conditions and environmental specifications to ensure reliable performance.
While the connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's essential to consult with 3M Interconnect or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required electrical and mechanical specifications.
The lead time for delivery of the 966224-2000-AR-PR connector can vary depending on the quantity, location, and availability. Typically, it ranges from 2-6 weeks. It's recommended to check with 3M Interconnect or an authorized distributor for the most up-to-date lead time information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
966224-2000-AR-PR Overview

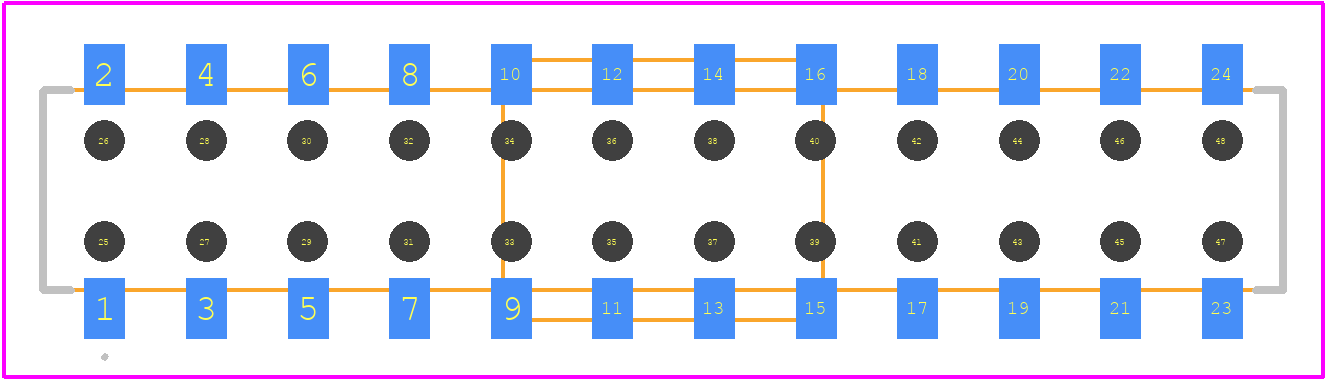

Use the download button to access the 966224-2000-AR-PR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 96622,
or try a keyword search, such as Headers and Edge Type Connectors
