- Part Number 966871-1
- Manufacturer TE Connectivity
- Pin Count 22
- Part Category Connector
- Package Category Other
- Footprint Name Other - 966871-1-1
- Released Date Aug 31, 2022
- Last Modified Date Dec 15, 2024 11:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
966871-1 Details
-
Manufacturer Part Number:
966871-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
8
-
Board Mounting Option:
BOARD LOCK
-
Body Breadth:
0.772 inch
-
Body Depth:
0.827 inch
966871-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 966871-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent connector damage or disconnection.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for specific wire sizes and applications.
-
The 966871-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
-
The 966871-1 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you plan to use the connector in environments with high humidity or exposure to chemicals, consult with TE Connectivity or a qualified engineer to determine the connector's suitability and any necessary precautions or modifications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
966871-1 Overview

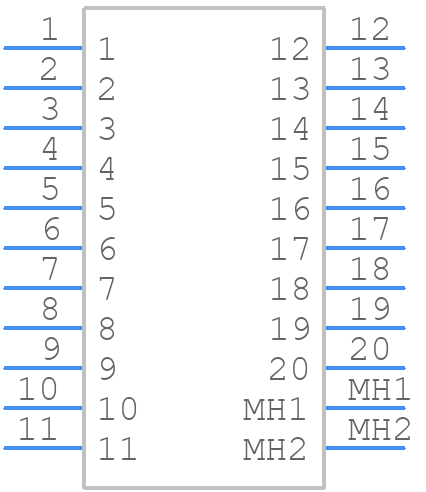

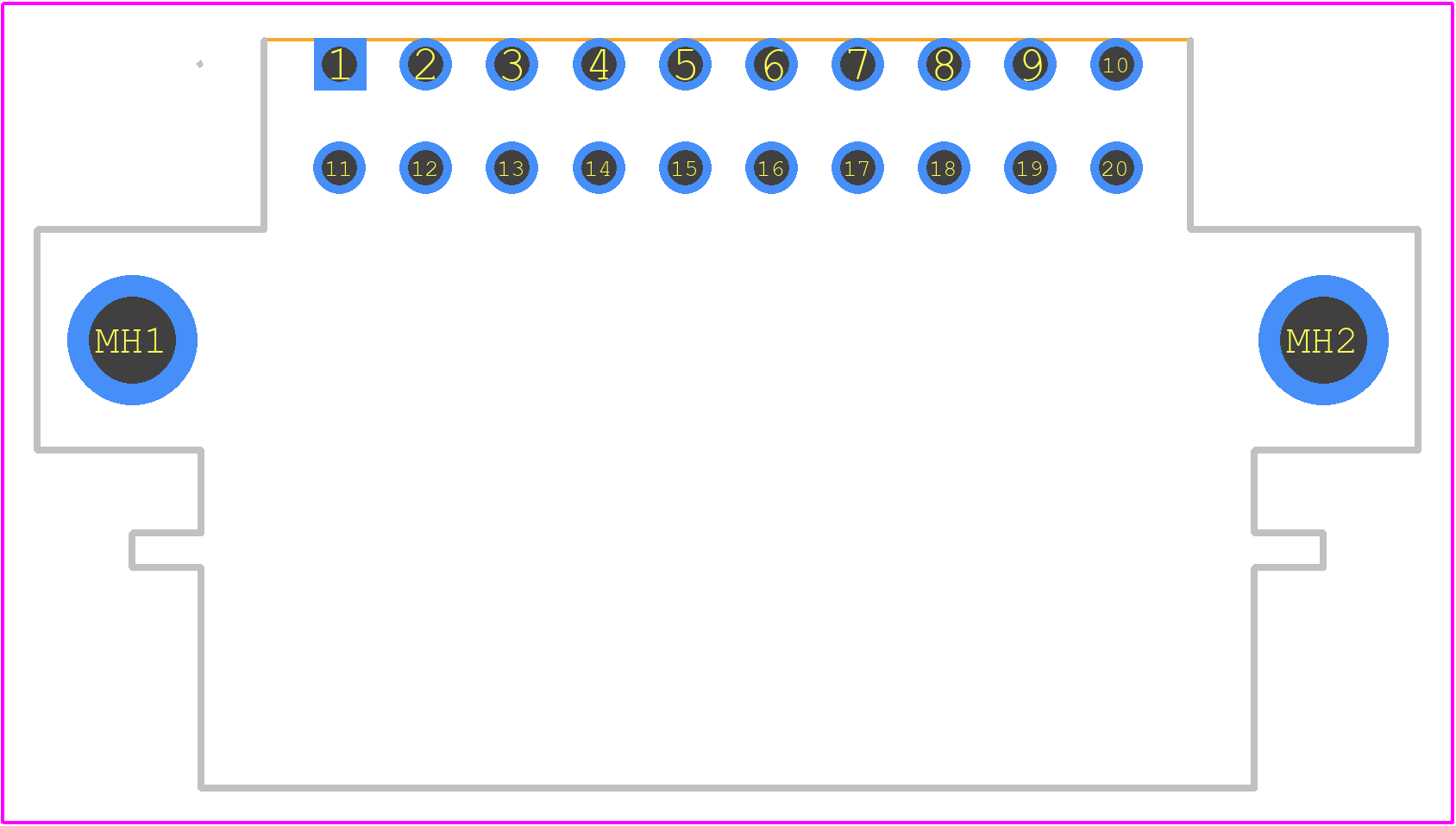

Use the download button to access the 966871-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 96687,
or try a keyword search, such as Combination Line Connectors
