97-1-C-5/3D - Pickering

Description: Pickering Series 97 reed relay 97-1-C-5/3D: 1 Form C - SPDT Changeover; Changeover; 0.25A, 3W, 200V switching, 220V stand-off; 5V coil, 500 ?; diode fitted; 10.7×18.8×9.4mm. Industries: precision instrumentation, ATE, semiconductor test, medical devices.

Download 97-1-C-5/3D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

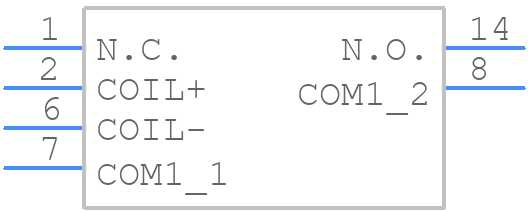

Symbol
97-1-C-5/3D - Pickering - PCB symbol
click to zoom

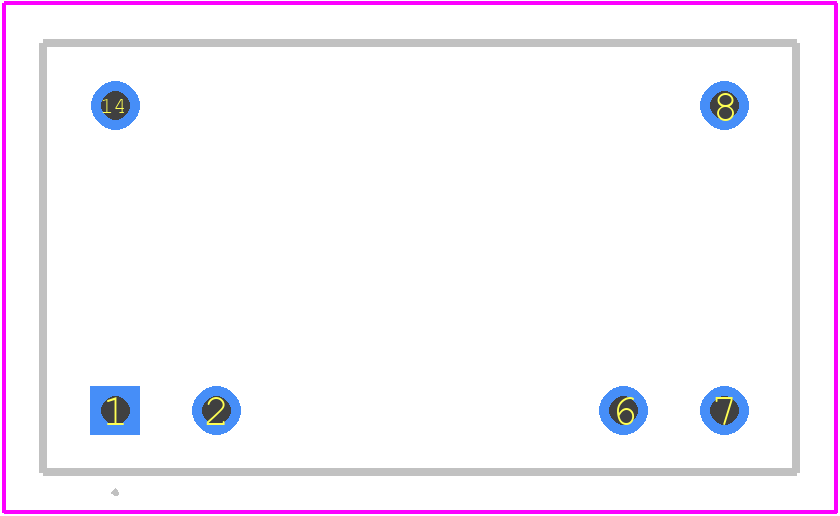

PCB Footprints
97-1-C-5/3D - Pickering PCB footprint - Other - Other - 97-1-C-5/3D-2
click to zoom
3D Models
97-1-C-5/3D - Pickering - 3D model - Other - 97-1-C-5/3D-2
click to zoom

97-1-C-5/3D Details

  • Manufacturer Part Number:

    97-1-C-5/3D

  • Manufacturer:

    Pickering Interfaces Ltd

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

97-1-C-5/3D Overview

Use the download button to access the 97-1-C-5/3D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 97-1-, or try a keyword search, such as Headers and Edge Type Connectors
