97C04ST - Grayhill

Description: DIP Switches / SIP Switches Half Pitch DIP 4 Pos Top Tape Seal

Download 97C04ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

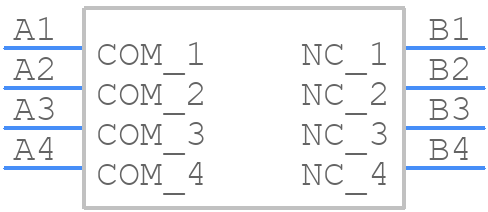

Symbol
97C04ST - Grayhill - PCB symbol
click to zoom
PCB Footprints
97C04ST - Grayhill PCB footprint - Other - Other - 97C04ST-1
click to zoom
3D Models
97C04ST - Grayhill - 3D model - Other - 97C04ST-1
click to zoom

97C04ST Details

  • Manufacturer Part Number:

    97C04ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    8

  • Actuator Type:

    SLIDE TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    4.5 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    6.3 mm

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    .025A@24VDC

  • Contact Voltage(DC)-Max:

    24 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Sealing:

    TOP TAPE SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

97C04ST Frequently Asked Questions (FAQs)

  • The recommended torque for the 97C04ST rotary switch is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the 97C04ST is designed to withstand high-vibration environments. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
  • The operating temperature range for the 97C04ST is -20°C to 85°C (-4°F to 185°F).
  • Yes, the 97C04ST is designed to be IP67 rated, making it suitable for washdown or harsh environments. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific environmental requirements of your application.
  • Yes, Grayhill offers customization options for the 97C04ST, including different shaft and bushing configurations. Contact Grayhill's sales team to discuss your specific requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

97C04ST Overview

Use the download button to access the 97C04ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 97C04, or try a keyword search, such as DIP Switches
