The recommended torque is 6-8 in-lbs (0.7-0.9 Nm) to ensure a secure connection.
Yes, the 985 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The 985 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use.
The maximum current rating for the 985 connector is 5A per contact, but it's recommended to derate the current based on the specific application and environmental conditions.
The 985 connector can be used with either a PCB or a panel, depending on the specific application requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
985 Overview

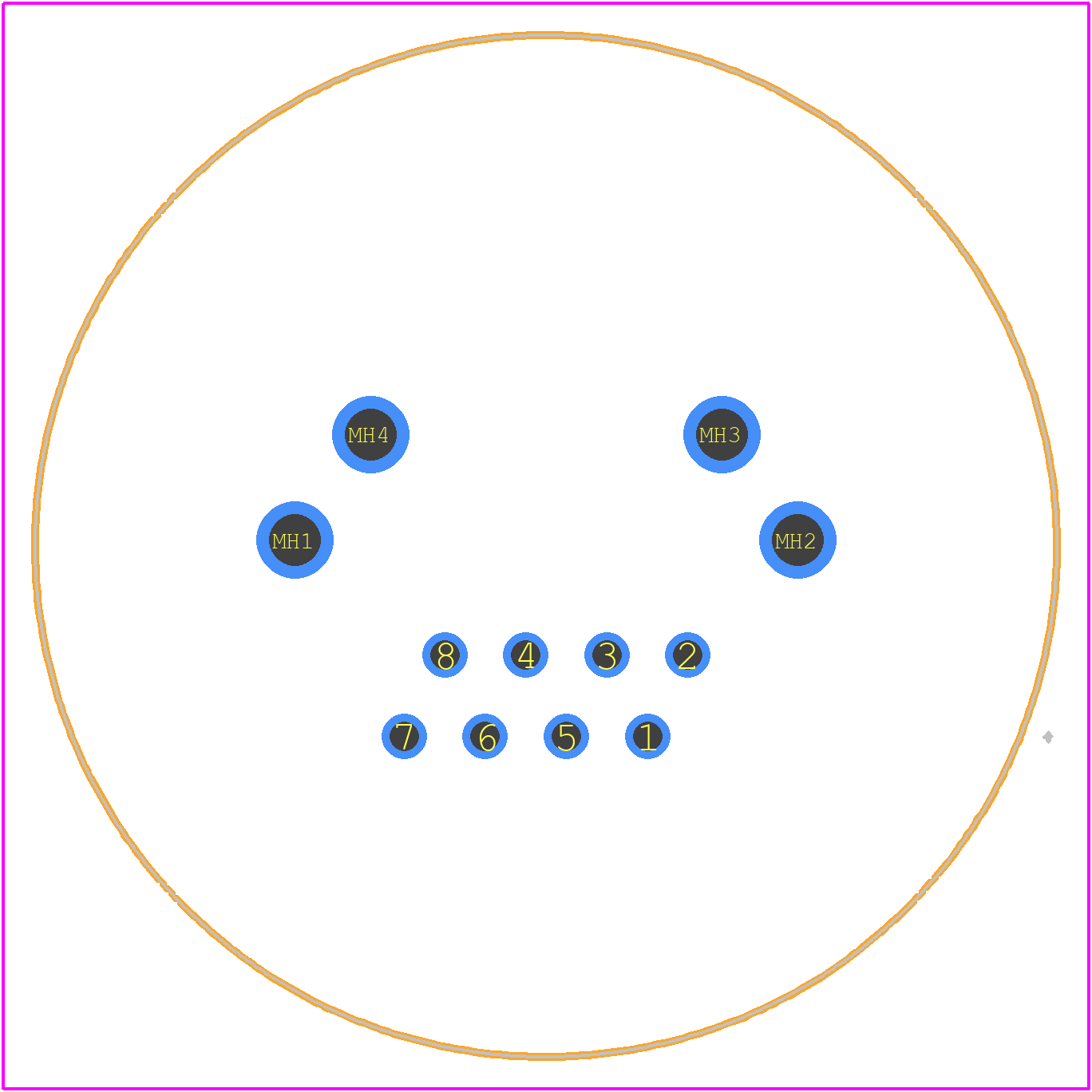

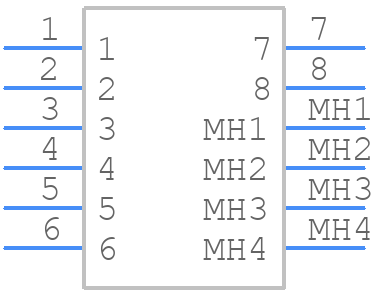

Use the download button to access the 985 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Fixed Capacitors
