999-H15-PS2L571 - NorComp

Description: D-Sub Dualport Connectors RA 15POS FEM 3A

Download 999-H15-PS2L571 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

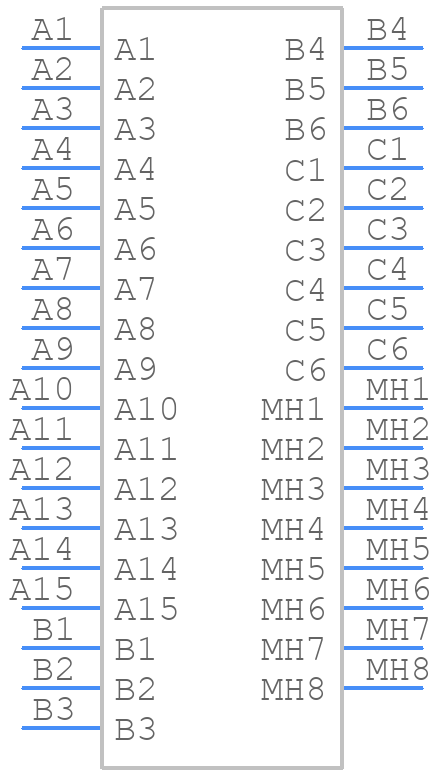

999-H15-PS2L571 - NorComp - PCB symbol
click to zoom
PCB Footprints

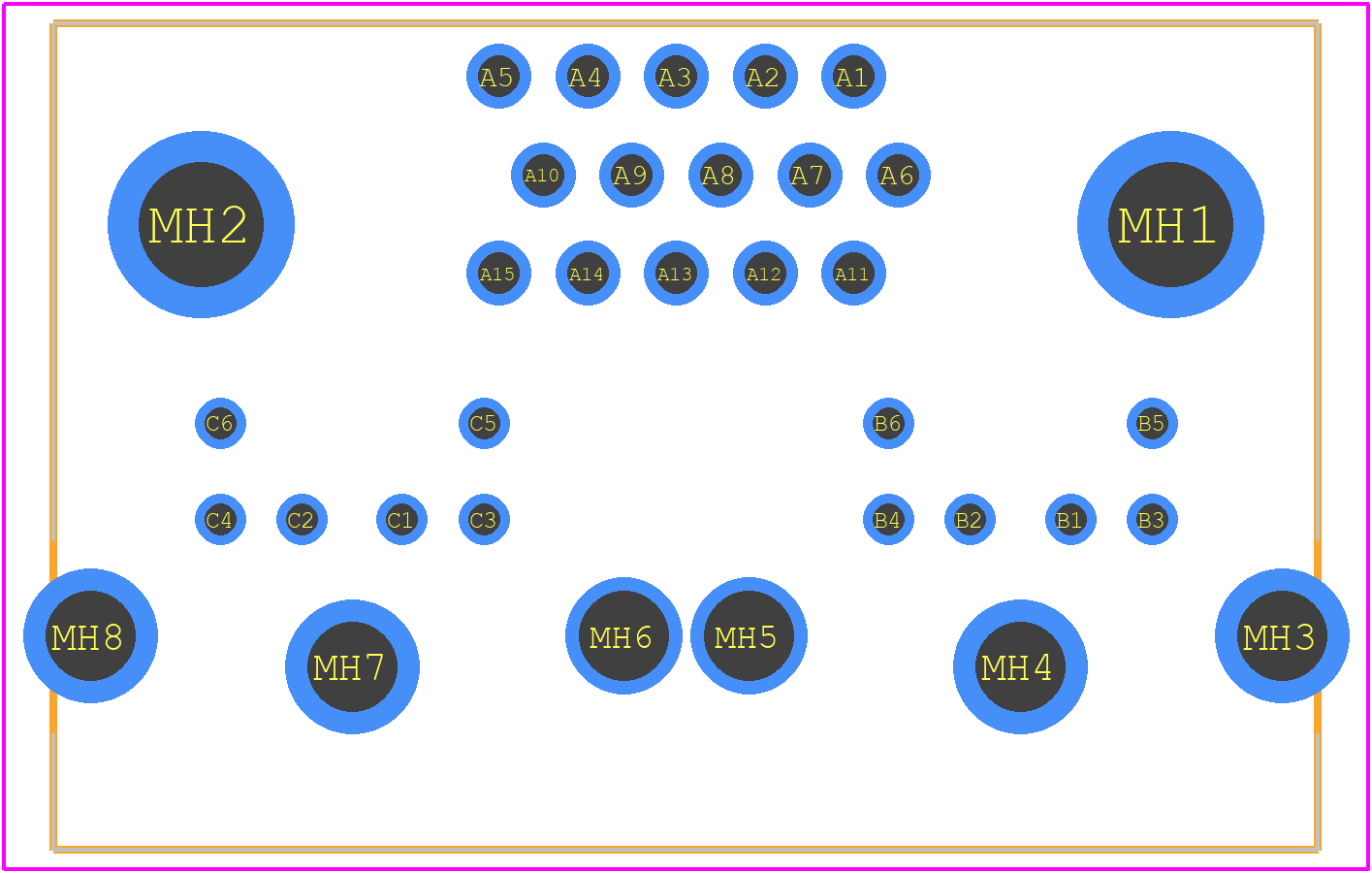

999-H15-PS2L571 - NorComp PCB footprint - Other - Other - 999-H15-PS2L571-2
click to zoom
3D Models
999-H15-PS2L571 - NorComp - 3D model - Other - 999-H15-PS2L571-2
click to zoom

999-H15-PS2L571 Details

  • Manufacturer Part Number:

    999-H15-PS2L571

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • Connector Type:

    RECTANGULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

999-H15-PS2L571 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
  • The operating temperature range of the 999-H15-PS2L571 connector is -55°C to 125°C (-133°F to 257°F).
  • Yes, the connector is designed to be compatible with potting or encapsulation, but it's recommended to consult with NorComp or a qualified engineer to ensure proper sealing and material compatibility.
  • The mating cycle life of the 999-H15-PS2L571 connector is rated for a minimum of 500 mating cycles.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

999-H15-PS2L571 Overview

Use the download button to access the 999-H15-PS2L571 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 999-H, or try a keyword search, such as Other Rectangular Connectors
