9994000000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 12, Clamping yoke connection, THT solder connection, 90°, Box

Download 9994000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
9994000000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

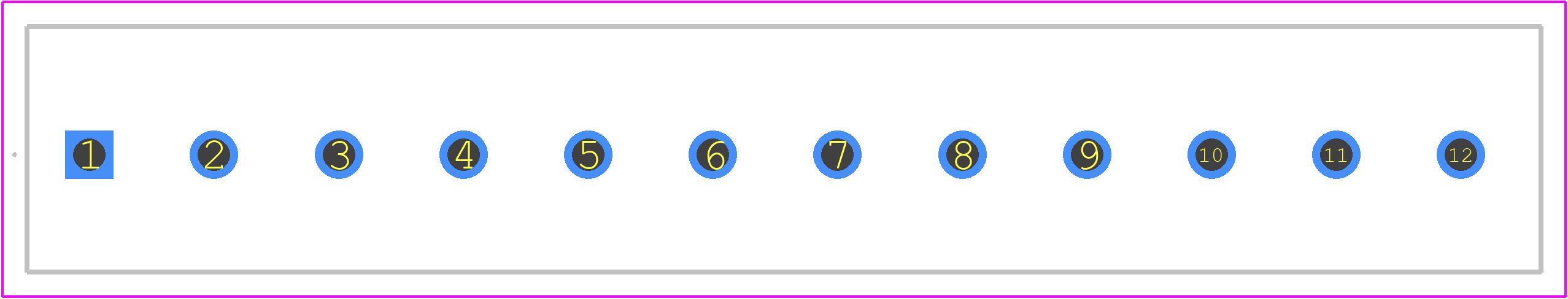

9994000000 - Weidmüller PCB footprint - Other - Other - 9994000000-2
click to zoom
3D Models
9994000000 - Weidmüller - 3D model - Other - 9994000000-2
click to zoom

9994000000 Details

  • Manufacturer Part Number:

    9994000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks, 2 Days

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    5.57

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    17.5 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG
