The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 9994420000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure the connector meets the specific vibration requirements of your application.
The 9994420000 has a protection rating of IP20, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
While the datasheet specifies a specific wire gauge, it's possible to use a different gauge with some limitations. However, you'll need to ensure the wire gauge meets the connector's minimum and maximum wire size specifications, and that the connector's performance is not compromised.

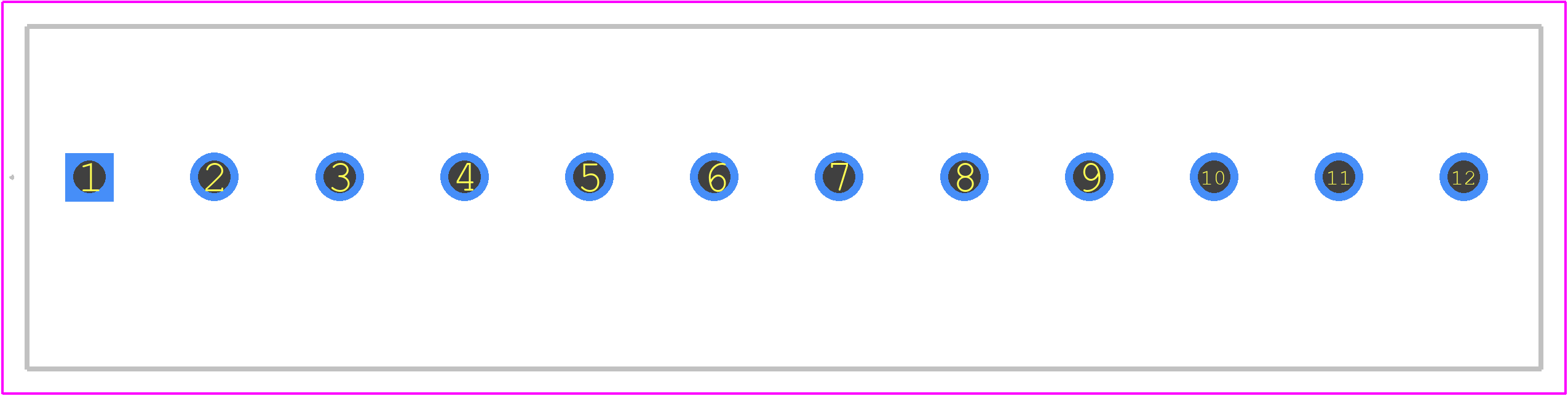

The 9994420000 has a specific footprint and pinout. To ensure compatibility, verify that your PCB design meets the connector's mechanical and electrical requirements, and that the connector's pinout matches your PCB's layout.
