9994610000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 10, Clamping yoke connection, THT solder connection, 135°, Box

Download 9994610000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
9994610000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

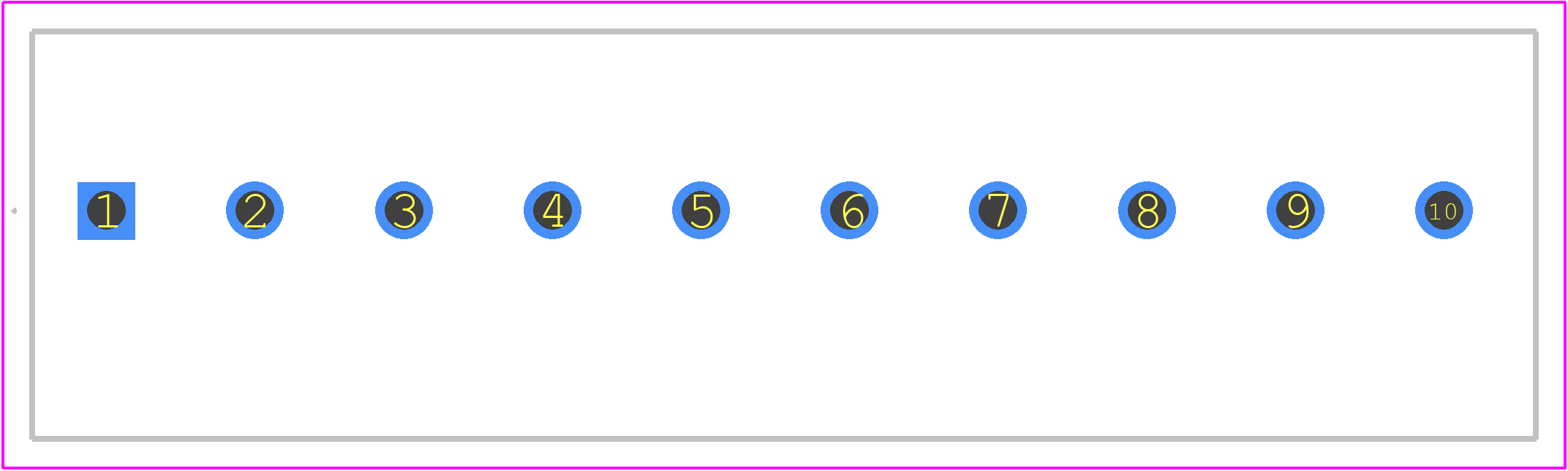

9994610000 - Weidmüller PCB footprint - Other - Other - 9994610000-2
click to zoom
3D Models
9994610000 - Weidmüller - 3D model - Other - 9994610000-2
click to zoom

9994610000 Details

  • Manufacturer Part Number:

    9994610000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    POLYAMIDE, 94V-2

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG
