9994720000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 21, Clamping yoke connection, THT solder connection, 135°, Box

Download 9994720000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

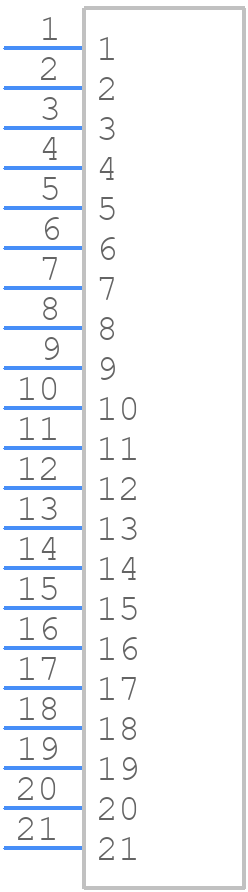

9994720000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

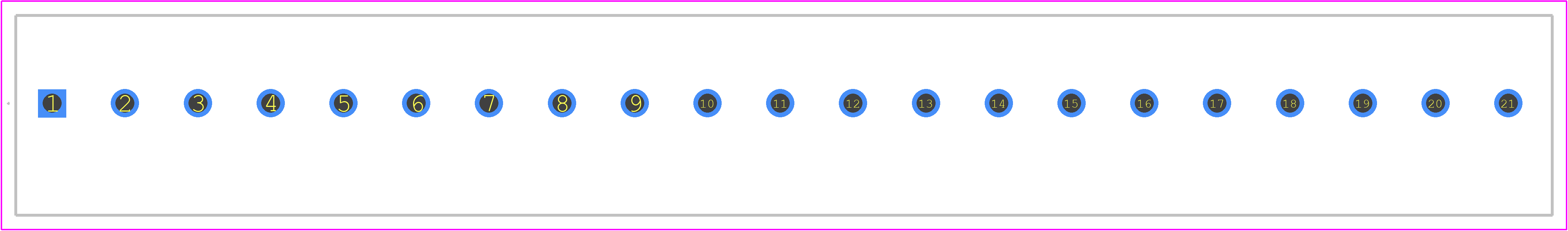

9994720000 - Weidmüller PCB footprint - Other - Other - 9994720000
click to zoom
3D Models
9994720000 - Weidmüller - 3D model - Other - 9994720000
click to zoom

9994720000 Details

  • Manufacturer Part Number:

    9994720000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    21

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2
