99S20D-40MA5-Z footprint, schematic symbol and 3D model by Rosenberger

Symbol

click to zoom

PCB Footprints

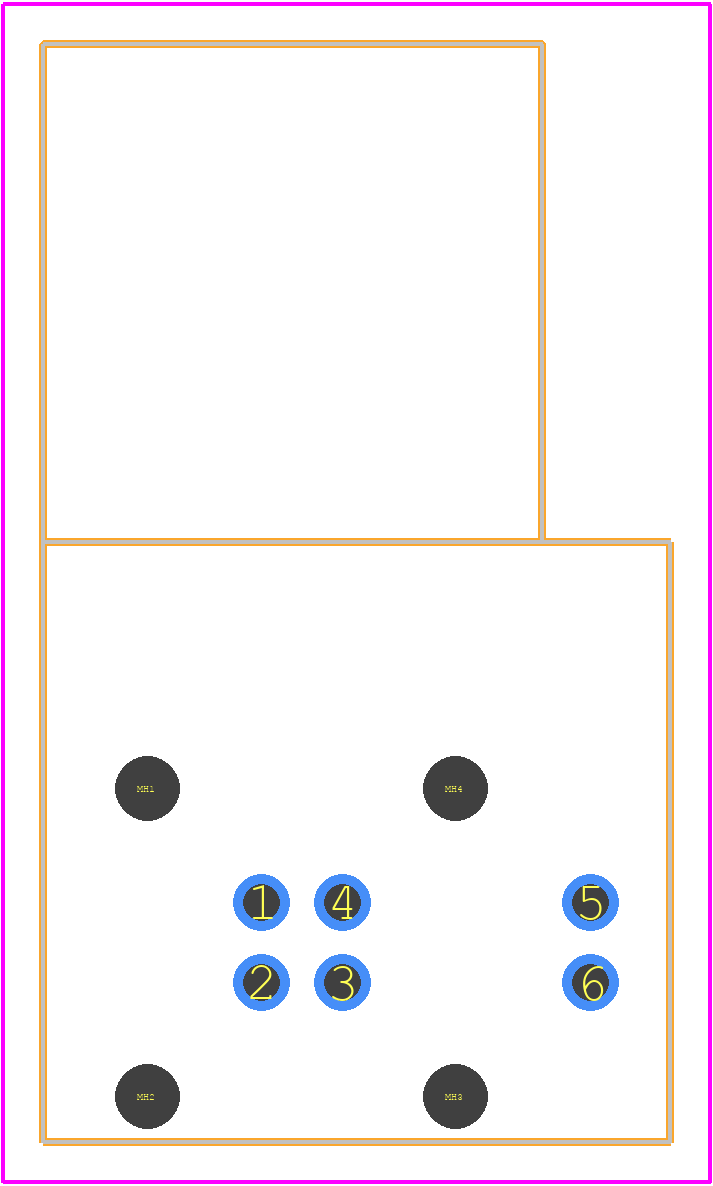

99S20D-40MA5-Z - Rosenberger PCB footprint - Other - Other - 99S20D-40MA5-Z-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 99S20D-40MA5-Z
Part Number 99S20D-40MA5-Z
Manufacturer Rosenberger
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 99S20D-40MA5-Z-1
Released Date Sep 10, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

99S20D-40MA5-Z Details

Manufacturer Part Number:
99S20D-40MA5-Z
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Rosenberger
Connector Type:
RF CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE

Trust Checks

Expert Contribution

System Verified

Community Approved

99S20D-40MA5-Z Overview

Use the download button to access the 99S20D-40MA5-Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 99S20, or try a keyword search, such as Other RF Connectors
