9DB206CLLF - Renesas Electronics

Description: The 9DB206 is a high performance 1-to-6 Differential-to-HCSL Jitter Attenuator designed for use in PCI Express®™ systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a jitter-attenuating device may be necessary in order to reduce high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 9DB206 has two PLL bandw

Download 9DB206CLLF Model

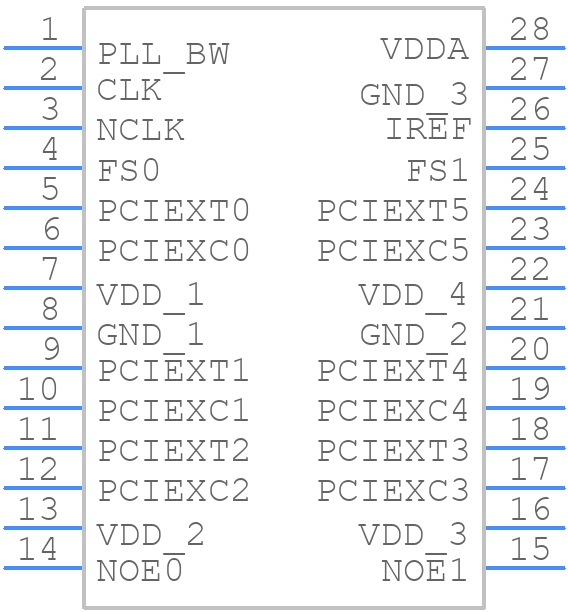

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB206CLLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG28_2021
click to zoom
3D Models
9DB206CLLF - Renesas Electronics  - 3D model - Small Outline Packages - PGG28_2021
click to zoom

9DB206CLLF Details

  • Manufacturer Part Number:

    9DB206CLLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    PGG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G28

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    140 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    140 MHz

  • Supply Current-Max:

    112 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe
