9DB306BLLF - Renesas Electronics

Description: The 9DB306 is a high performance 1-to-6 Differential-to- LVPECL Jitter Attenuator designed for use in PCI Express®™ systems. In some PCI Express® systems, such as those found in desktop PCs, the PCI Express® clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer. In these systems, a zero delay buffer may be required to attenuate high frequency random and deterministic jitter components from the PLL synthesizer and from the system board. The 9DB306 has 2 PLL bandwidth modes. In

Download 9DB306BLLF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

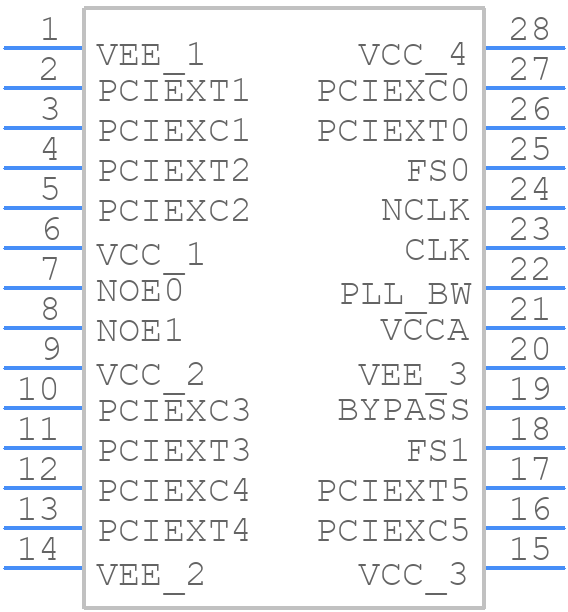

9DB306BLLF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DB306BLLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (28-pin TSSOP
click to zoom
3D Models
9DB306BLLF - Renesas Electronics - 3D model - Small Outline Packages - (28-pin TSSOP
click to zoom

9DB306BLLF Details

  • Manufacturer Part Number:

    9DB306BLLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PGG28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN
