9DB403DFLFT - Renesas Electronics

Description: The 9DB403 is compatible with the Intel DB400v2 Differential Buffer Specification. This buffer provides 4 PCI Express® Gen2 clocks. The 9DB403 is driven by a differential output pair from a CK410B+, CK505 or CK509B main clock generator.

Download 9DB403DFLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

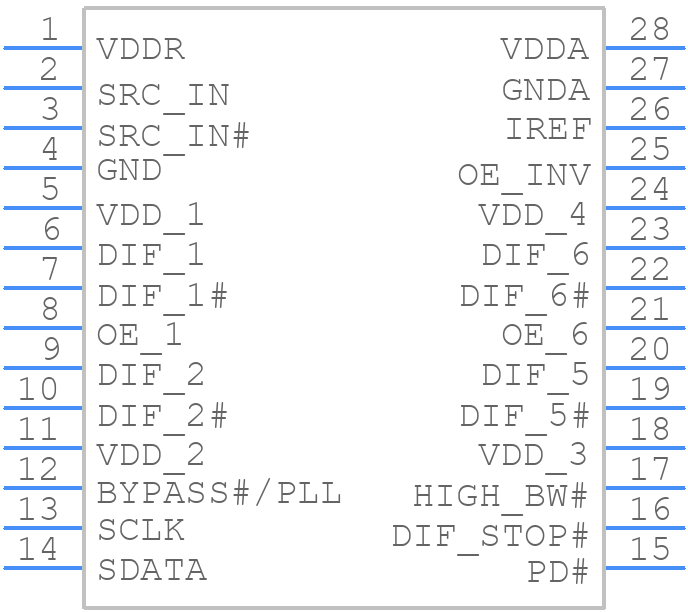

Symbol
9DB403DFLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DB403DFLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP28
click to zoom
3D Models
9DB403DFLFT - Renesas Electronics - 3D model - Small Outline Packages - SSOP28
click to zoom

9DB403DFLFT Details

  • Manufacturer Part Number:

    9DB403DFLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Manufacturer Package Code:

    PYG28

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

9DB403DFLFT Frequently Asked Questions (FAQs)

  • Renesas recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power planes.
  • Renesas recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K between the device and the heat sink. Ensure the heat sink is properly attached and the system is designed to operate within the specified temperature range.
  • Renesas recommends using 10-22 uF decoupling capacitors with an ESR of less than 1 ohm, placed as close as possible to the device's power pins. Use a capacitor with a voltage rating of at least 2x the maximum operating voltage.
  • Renesas recommends using a human body model (HBM) ESD protection circuit with a minimum of 2 kV rating. Ensure the ESD protection circuit is placed close to the device's input pins and connected to a solid ground plane.
  • Renesas recommends setting the internal regulators to their default values unless specific application requirements dictate otherwise. Refer to the datasheet for default values and adjustment procedures.
