9DB803DFILFT - Renesas Electronics

Description: The 9DB803 is compatible with the Intel DB800v2 Differential Buffer Specification. This buffer provides 8 PCI Express Gen2 clocks. The 9DB803 is driven by a differential output pair from a CK410B+, CK505 or CK509B main clock generator.

Download 9DB803DFILFT Model

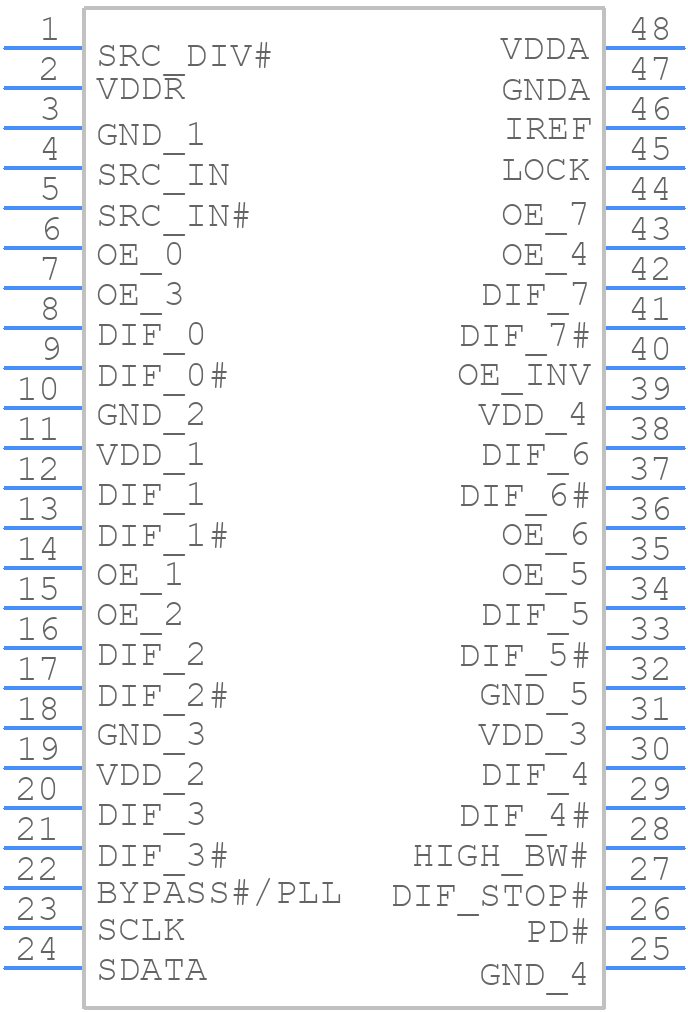

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

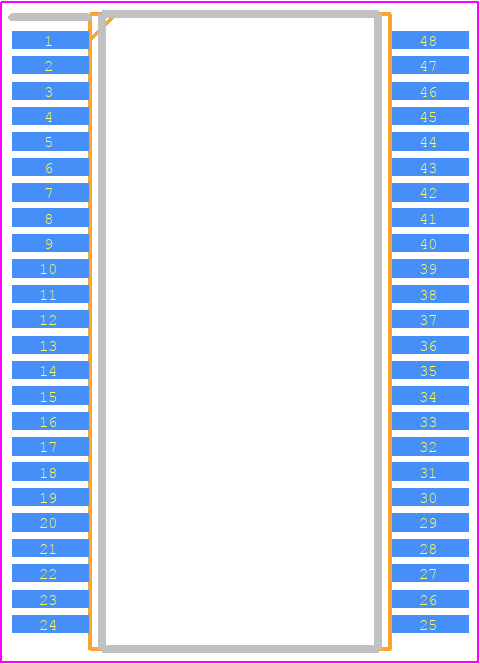

9DB803DFILFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 48-Lead SSOP
click to zoom
3D Models
9DB803DFILFT - Renesas Electronics  - 3D model - Small Outline Packages - 48-Lead SSOP
click to zoom

9DB803DFILFT Details

  • Manufacturer Part Number:

    9DB803DFILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    15.875 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP48,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

9DB803DFILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations, such as thermal vias, copper pours, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance.
  • The 9DB803DFILFT has an internal overcurrent protection (OCP) feature, but it's recommended to implement an external OCP circuit to provide additional protection. This can be achieved using a dedicated OCP IC or a discrete component solution, such as a sense resistor and a comparator.
  • The input capacitor selection depends on the specific application requirements, such as input voltage, output current, and ripple current. Renesas recommends using a low-ESR capacitor with a capacitance value between 10uF to 22uF, and a voltage rating that matches the input voltage. It's essential to consider the capacitor's ripple current rating, as excessive ripple current can lead to premature failure.
  • To troubleshoot the 9DB803DFILFT, start by verifying the input voltage, output voltage, and current. Use an oscilloscope to check for voltage ripple, noise, and transient responses. Also, ensure that the device is properly soldered, and the PCB layout is correct. If issues persist, consult Renesas' troubleshooting guides and application notes for specific guidance.
  • Renesas recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Examples of suitable TIMs include thermal tapes, thermal greases, or thermal pads. The choice of TIM depends on the specific application requirements, such as operating temperature, power density, and mechanical stress.
