9DBL0242CKILF - Renesas Electronics

Description: The 9DBL0242 2-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0242 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0242CKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

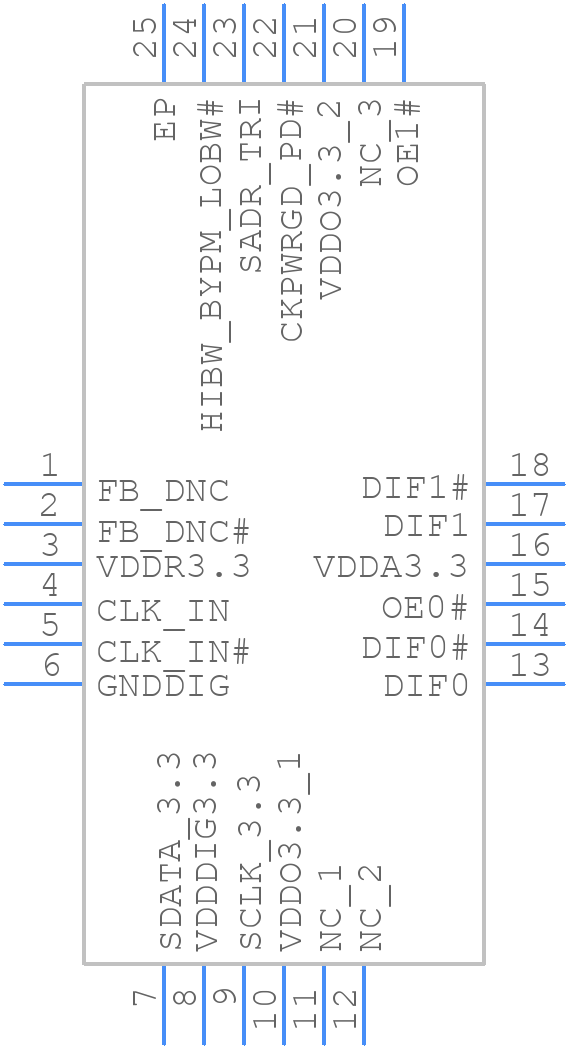

9DBL0242CKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBL0242CKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.90 mm Body, 0.5mm Pitch, Epad 2.60 x 2.60 mm-1
click to zoom
3D Models
9DBL0242CKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 24-VFQFPN 4.0 x 4.0 x 0.90 mm Body, 0.5mm Pitch, Epad 2.60 x 2.60 mm-1
click to zoom

9DBL0242CKILF Details

  • Manufacturer Part Number:

    9DBL0242CKILF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBL0242CKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3601EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas provides a Clock Configurator Tool (CCT) that allows users to configure the 9DBL0242CKILF for specific clocking applications. The tool generates a configuration file that can be used to program the device.
  • The 9DBL0242CKILF has an operating temperature range of -40°C to +85°C, but it's recommended to check the specific temperature range for the desired application and to consult the datasheet for thermal management guidelines.
  • Renesas provides a troubleshooting guide in their application note (R01AN3601EU0100) that covers common issues and provides guidance on how to debug and resolve problems with the 9DBL0242CKILF.
  • Yes, the 9DBL0242CKILF has specific power sequencing requirements to ensure proper operation. The datasheet provides guidelines for power-up and power-down sequencing, and it's recommended to follow these guidelines to avoid damage to the device.
