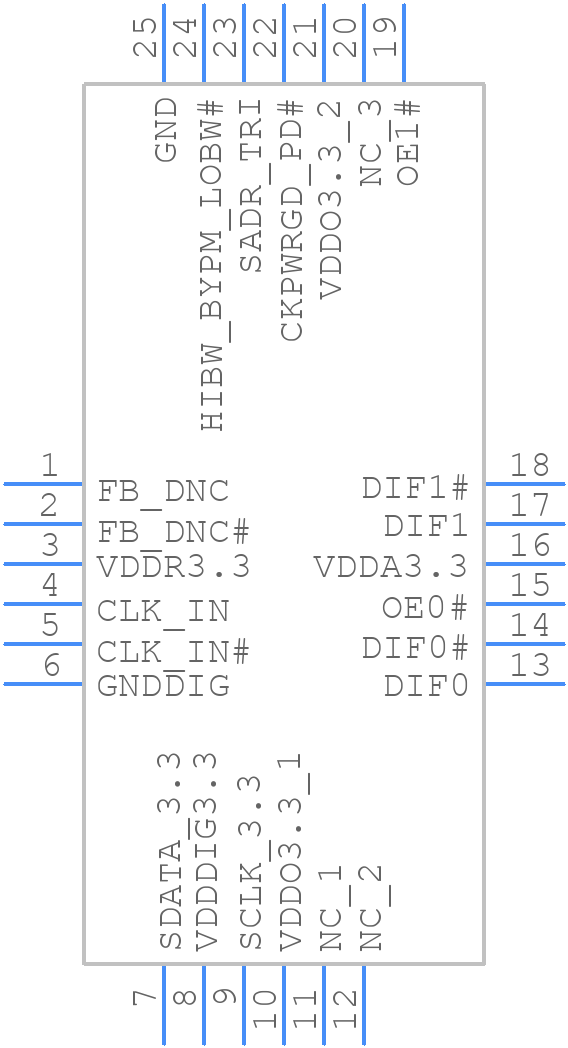

9DBL0242CKILFT - Renesas Electronics

9DBL0242CKILFT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the 9DBL0242CKILFT?
  Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for signal integrity, power supply, and thermal management.
• How do I implement clock signal routing and termination for the 9DBL0242CKILFT?
  Renesas recommends using a clock tree architecture with a central clock source and distributing the clock signal to each component. Termination should be done using a series resistor and capacitor (RC) network to minimize signal reflections and ensure signal integrity.
• What are the thermal management considerations for the 9DBL0242CKILFT?
  The 9DBL0242CKILFT has a thermal pad that must be connected to a heat sink or a thermal via to dissipate heat. Renesas recommends using a thermal interface material (TIM) and a heat sink with a thermal resistance of less than 10°C/W to ensure reliable operation.
• How do I configure the 9DBL0242CKILFT for low-power operation?
  The 9DBL0242CKILFT has multiple power modes, including a low-power mode that can be enabled by setting the appropriate register bits. Renesas provides detailed information on power mode configuration in their datasheet and application notes.
• What are the EMI and EMC considerations for the 9DBL0242CKILFT?
  Renesas recommends following standard EMI and EMC design practices, such as using a shielded enclosure, minimizing signal loop areas, and using EMI filters and absorbers. Additionally, the 9DBL0242CKILFT has built-in EMI reduction features, such as spread spectrum clocking, that can be enabled to reduce electromagnetic emissions.
