9DBL0252BKILFT - Renesas Electronics

Description: The 9DBL0252 2-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0252 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures.For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0252BKILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

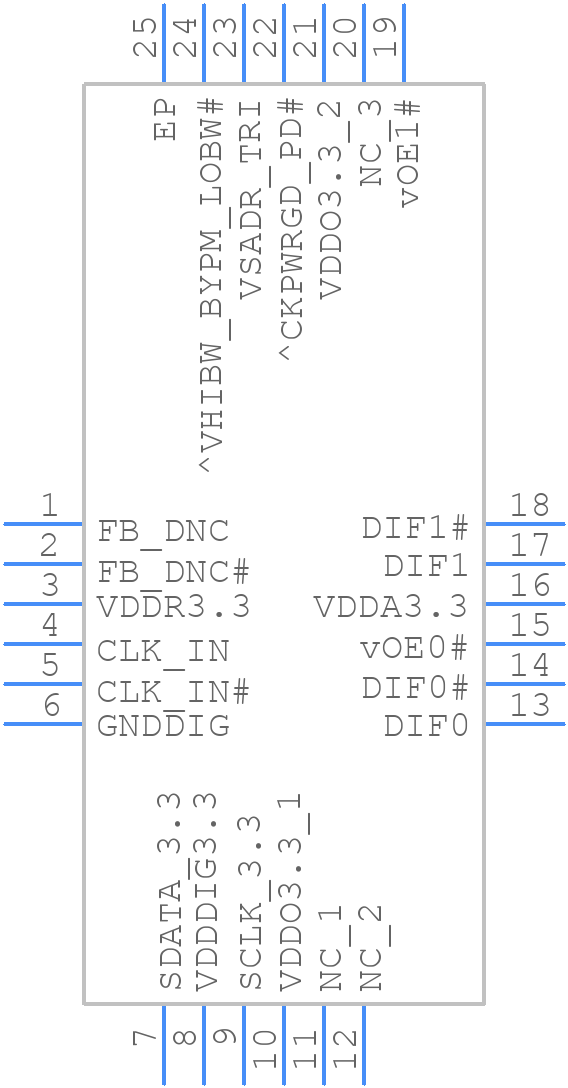

9DBL0252BKILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBL0252BKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P3
click to zoom
3D Models
9DBL0252BKILFT - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24P3
click to zoom

9DBL0252BKILFT Details

  • Manufacturer Part Number:

    9DBL0252BKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    9DBL

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    25 mA

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

9DBL0252BKILFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and decoupling capacitors should be placed close to the device.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 125°C). Use a heat sink or thermal interface material to dissipate heat, and consider using a thermal protection circuit to prevent overheating.
  • The internal oscillator can be configured using the OSCCTRL register. A typical setting is to use the internal oscillator with a frequency of 12 MHz, and to enable the oscillator stabilization feature to ensure reliable startup.
  • Use a logic analyzer or oscilloscope to monitor the I2C bus signals. Check for correct pin connections, clock frequency, and data transmission rates. Ensure that the I2C slave devices are properly addressed and configured.
  • The device requires a power-on reset (POR) signal to be asserted during power-up. The power supply voltage (VCC) should be applied before the input clock signal (CLK). Ensure that the power supply voltage is stable and within the recommended range before applying the clock signal.
