9DBL0442CKILFT - Renesas Electronics

Description: The 9DBL0442 4-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0442 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0442CKILFT Model

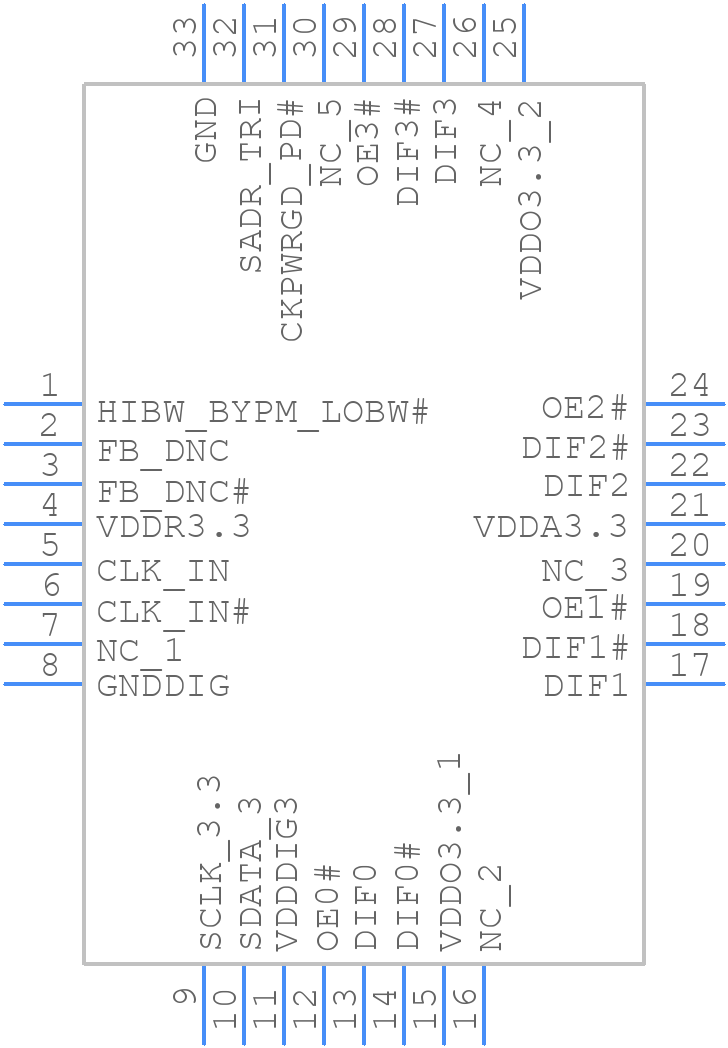

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0442CKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 9DBL0442CKILFT.
click to zoom
3D Models
9DBL0442CKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - 9DBL0442CKILFT.
click to zoom

9DBL0442CKILFT Details

  • Manufacturer Part Number:

    9DBL0442CKILFT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

9DBL0442CKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN983A) and design guides (e.g., RL78/G14 Group PCB Layout Guide). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent signal integrity issues.
  • Renesas recommends using an external POR circuit, such as a voltage supervisor IC (e.g., Renesas' R3160 series), to ensure a reliable power-on reset. The datasheet provides guidelines for POR circuit design, and Renesas' application notes (e.g., AN983A) offer more detailed information.
  • The 9DBL0442CKILFT has a thermal pad on the bottom of the package, which requires proper thermal management to prevent overheating. Renesas recommends using a thermal land pattern on the PCB, applying thermal interface material (TIM), and ensuring good airflow around the device. The datasheet provides thermal resistance values and guidelines for thermal design.
  • The 9DBL0442CKILFT has multiple clock sources and configurations. Renesas recommends using their clock configuration tool (e.g., Renesas Clock Configurator) to optimize clock settings for specific applications. The tool helps to generate clock configuration code and ensures compliance with the device's clocking requirements.
  • Renesas provides guidelines for EMC and EMI considerations in their application notes (e.g., AN983A) and design guides (e.g., RL78/G14 Group EMC/EMI Design Guide). It's essential to follow these guidelines to ensure compliance with regulatory requirements and prevent electromagnetic interference issues.
