9DBL0452CKILFT - Renesas Electronics

Description: The 9DBL0452 4-output zero-delay/fanout buffer is a 3.3V member of Renesas' full-featured PCIe family. The 9DBL0452 supports PCIe Gen 1 through Gen 6 and both Common and Independent Reference Clock architectures.For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0452CKILFT Model
Schematic

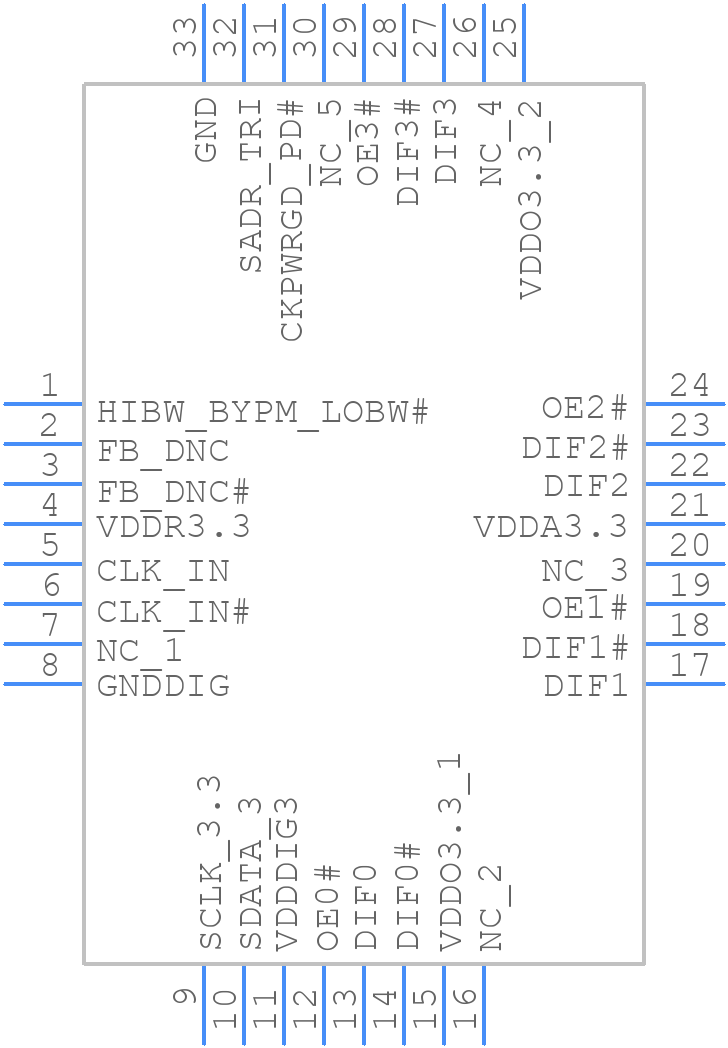

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0452CKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 5.00x5.00x0.90 mm 0.50mm P_2022
click to zoom
3D Models
9DBL0452CKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - VFQFPN 5.00x5.00x0.90 mm 0.50mm P_2022
click to zoom

9DBL0452CKILFT Details

  • Manufacturer Part Number:

    9DBL0452CKILFT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)
