9DBL0641BKILF - Renesas Electronics

Description: The 9DBL0641 6-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0641 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0641BKILF Model

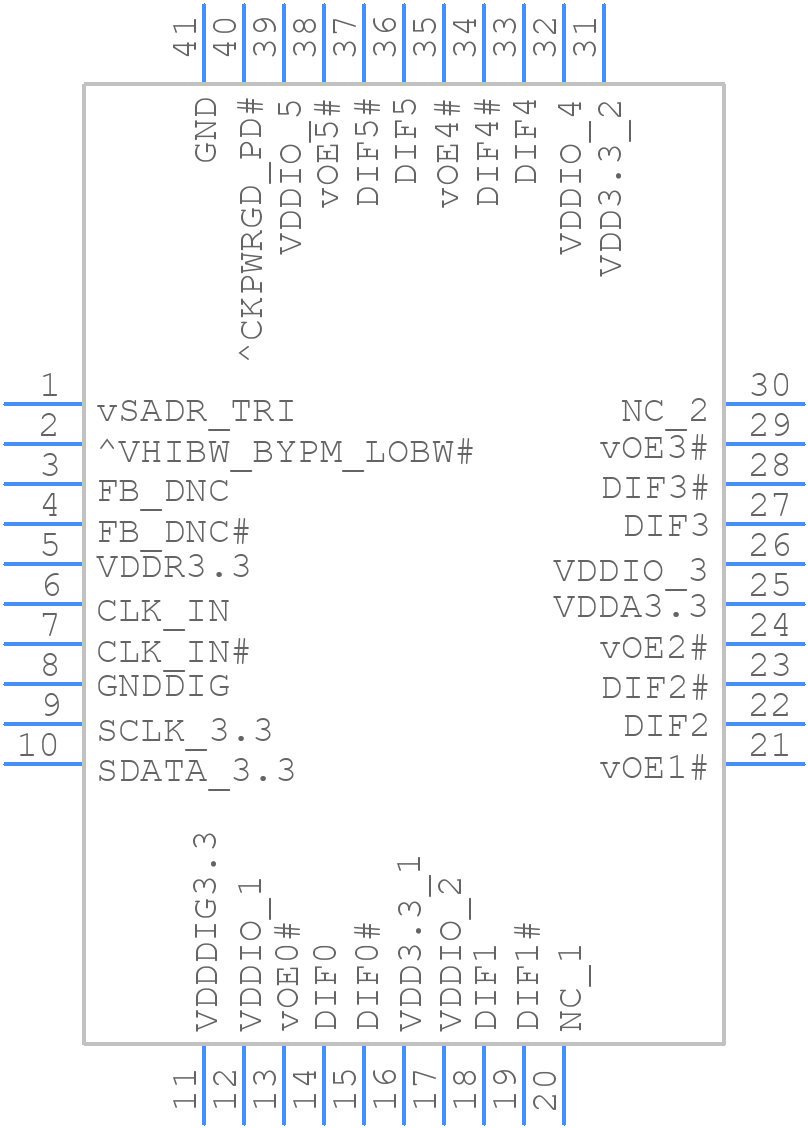

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0641BKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG40P2-ren1
click to zoom
3D Models
9DBL0641BKILF - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG40P2-ren1
click to zoom

9DBL0641BKILF Details

  • Manufacturer Part Number:

    9DBL0641BKILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    9DBL

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    25 mA

  • Same Edge Skew-Max (tskwd):

    0.055 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

9DBL0641BKILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 9DBL0641BKILF is -40°C to 125°C.
  • To ensure reliable data transfer with the 9DBL0641BKILF, it is recommended to use a clock frequency of 100 MHz or less, and to follow the recommended PCB layout guidelines to minimize signal noise and interference.
  • The maximum clock frequency supported by the 9DBL0641BKILF is 100 MHz.
  • To handle power-up and power-down sequencing with the 9DBL0641BKILF, it is recommended to follow the recommended power-up and power-down sequences outlined in the datasheet, and to ensure that the power supply voltage is stable and within the recommended range.
  • The recommended power supply voltage for the 9DBL0641BKILF is 1.7V to 1.9V.
