9DBL0741BKILFT - Renesas Electronics

Description: The 9DBL0741 device is a member of IDT's 3.3V full-featured PCIe clock family. The 9DBL0741 device supports PCIe Gen1-4 Common Clocked (CC) and PCIe Separate Reference Independent Spread (SRIS) systems. The device's integrated output terminations provide a direct connection to 100Ω transmission lines. The 9DBL07P1 can be factory programmed with a user-defined power up default SMBus configuration.For information regarding evaluation boards and material, please contact your local IDT sales representative.

Download 9DBL0741BKILFT Model

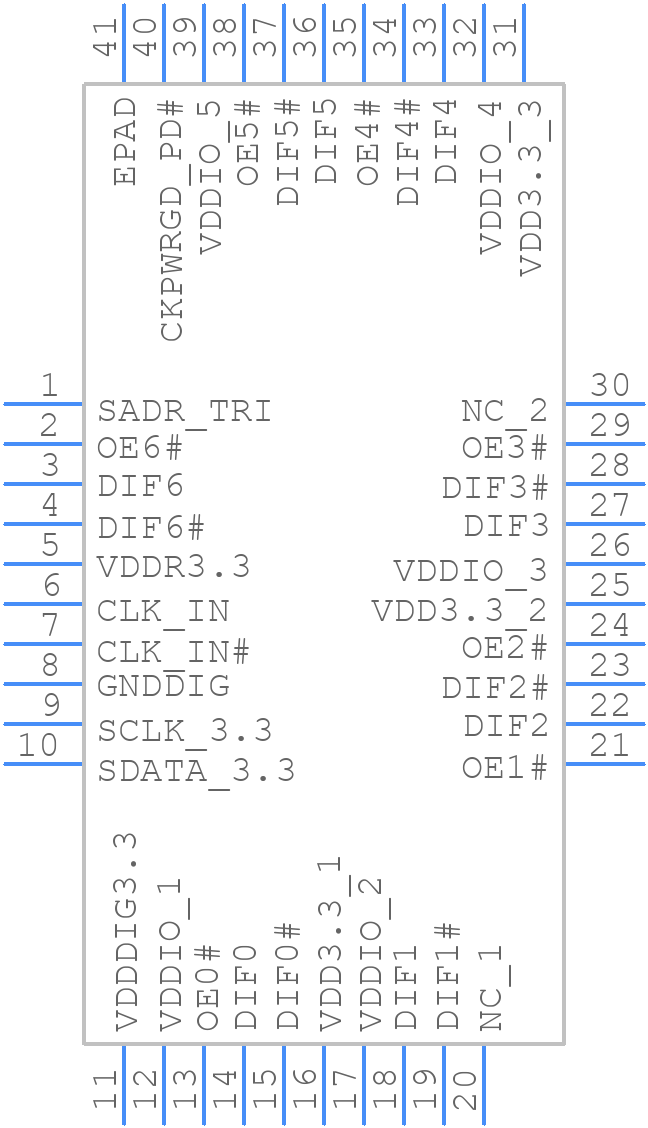

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0741BKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG40P2**-1
click to zoom
3D Models
9DBL0741BKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG40P2**-1
click to zoom

9DBL0741BKILFT Details

  • Manufacturer Part Number:

    9DBL0741BKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    NDG40P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DBL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of True Outputs:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    16 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • fmax-Min:

    200 MHz

9DBL0741BKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 9DBL0741BKILFT, which includes recommendations for PCB layout, thermal management, and component placement. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
  • The 9DBL0741BKILFT has a complex clocking system, and configuration requires a deep understanding of the device's registers and clock domains. Renesas provides a clock configuration tool and application notes that can help engineers configure the device for specific clock frequencies and modes.
  • The 9DBL0741BKILFT has specific power sequencing and ramp-up requirements to ensure proper operation and prevent damage. Renesas recommends following the power-up and power-down sequences outlined in the datasheet and application notes to ensure reliable operation.
  • Renesas provides a secure boot implementation guide and tools for the 9DBL0741BKILFT. Engineers should follow these guidelines to implement and verify the secure boot process, which involves generating and verifying digital signatures, configuring the boot mode, and ensuring the integrity of the boot process.
  • Renesas provides guidelines for EMC and EMI considerations in the datasheet and application notes. Engineers should follow these guidelines to ensure that their design meets the necessary EMC and EMI standards, including proper PCB layout, shielding, and filtering.
