Description:The 9DBL0841 8-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0841 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures. For information regarding evaluation boards and material, please contact your local sales representative.
Renesas provides a reference design guide for the 9DBL0841CKILFT, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The 9DBL0841CKILFT is highly configurable, and the configuration process involves setting the appropriate register values. Renesas provides a detailed programming guide and a configuration tool to help engineers configure the device for their specific requirements.
The 9DBL0841CKILFT has specific power-up and power-down sequencing requirements to ensure proper operation and prevent damage. Renesas recommends following the power-up and power-down sequences outlined in the datasheet and application notes to ensure reliable operation.
Renesas provides application notes and troubleshooting guides that cover common issues and their solutions. Engineers can also use Renesas' support resources, such as FAQs, knowledge base articles, and technical support forums, to find answers to specific questions.
Yes, the 9DBL0841CKILFT is a high-frequency device, and EMI and RFI considerations are crucial. Renesas recommends following proper PCB design and layout practices, using shielding and filtering, and implementing EMI and RFI mitigation techniques to minimize electromagnetic interference and radio-frequency interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBL0841CKILFT Overview

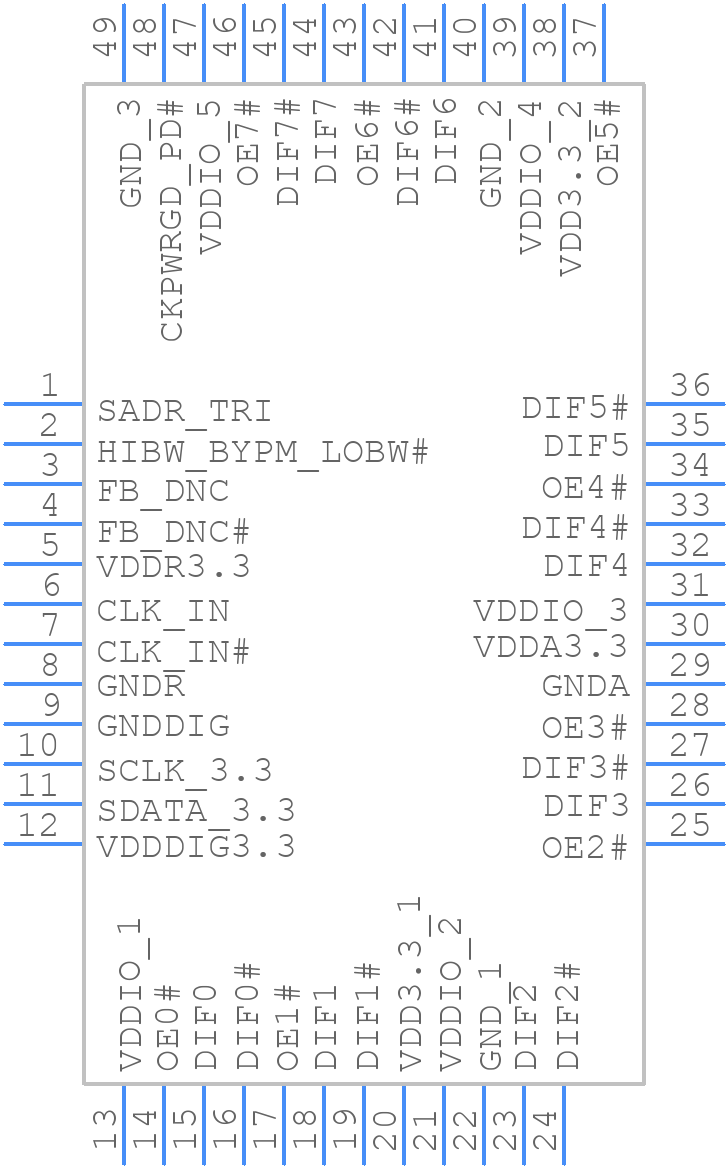

Use the download button to access the 9DBL0841CKILFT schematic symbol, PCB footprint, and 3D model.
