9DBL0851CKILF - Renesas Electronics

Description: The 9DBL0851 8-output zero-delay/fan-out buffer is a 3.3V member of Renesas' Full-Featured PCIe family. The 9DBL0851 supports PCIe Gen1 through Gen5 and both Common and Independent Reference Clock architectures.For information regarding evaluation boards and material, please contact your local sales representative.

Download 9DBL0851CKILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

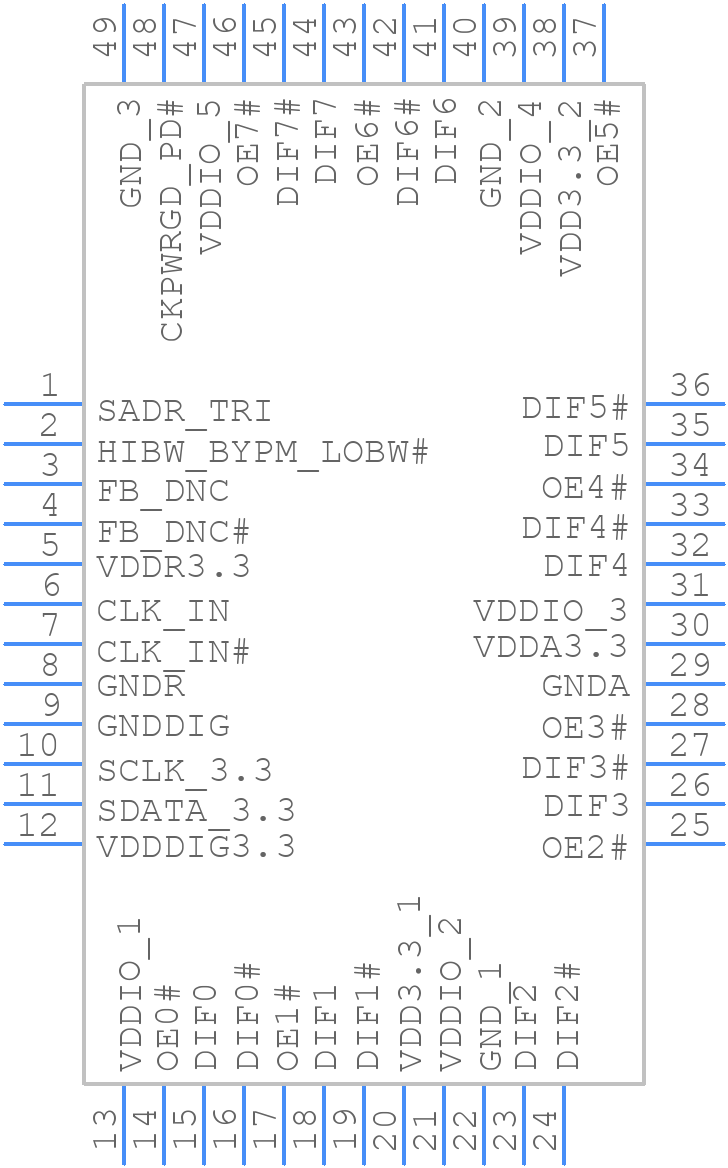

9DBL0851CKILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
9DBL0851CKILF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom
3D Models
9DBL0851CKILF - Renesas Electronics - 3D model - Quad Flat No-Lead - 48-VFQFPN 6.0 x 6.0 x 0.9 mm Body, 0.4mm Pitch
click to zoom

9DBL0851CKILF Details

  • Manufacturer Part Number:

    9DBL0851CKILF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

9DBL0851CKILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas provides a Clock Configurator Tool (CCT) that allows users to configure the 9DBL0851CKILF for their specific clocking application. The tool generates a configuration file that can be used to program the device.
  • The 9DBL0851CKILF has an operating temperature range of -40°C to +85°C, but it's recommended to check the specific temperature range for the desired application and to consult the datasheet for thermal management guidelines.
  • Renesas provides a troubleshooting guide in their application note (R01AN4461EJ0100) that covers common issues and provides guidance on how to debug and resolve them. Additionally, Renesas offers technical support and resources to help with troubleshooting.
  • Yes, the 9DBL0851CKILF has specific power sequencing requirements to ensure proper operation. The datasheet provides guidelines for power-up and power-down sequencing, and it's recommended to follow these guidelines to prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9DBL0851CKILF Overview

Use the download button to access the 9DBL0851CKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBL0, or try a keyword search, such as Clock Drivers
