9DBL0941BKILF - Renesas Electronics

Description: The 9DBL0941 device is a member of IDT's 3.3V full-featured PCIe clock family. The 9DBL0941 device supports PCIe Gen1-4 Common Clocked (CC) and PCIe Separate Reference Independent Spread (SRIS) systems. The device's integrated output terminations provide a direct connection to 100Ω transmission lines. The 9DBL09P1 can be factory programmed with a user-defined power up default SMBus configuration.For information regarding evaluation boards and material, please contact your local IDT sales representative.

Download 9DBL0941BKILF Model
Schematic

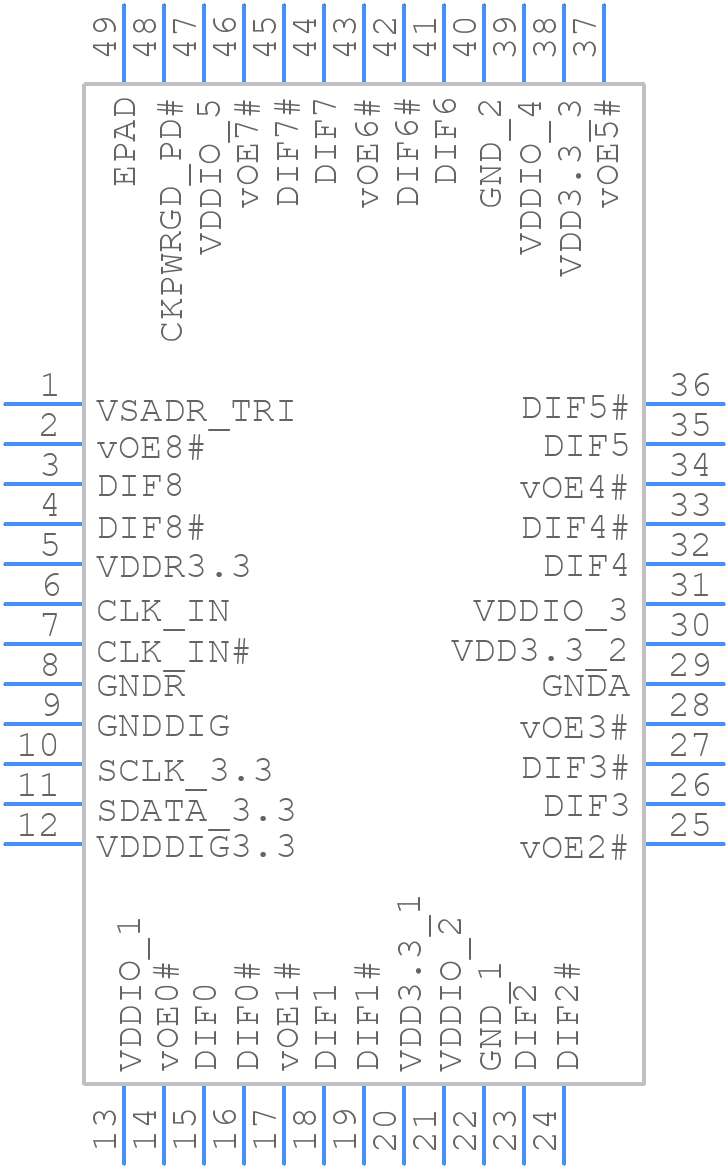

symbols
