9DBL0941BKILFT - Renesas Electronics

Description: The 9DBL0941 device is a member of IDT's 3.3V full-featured PCIe clock family. The 9DBL0941 device supports PCIe Gen1-4 Common Clocked (CC) and PCIe Separate Reference Independent Spread (SRIS) systems. The device's integrated output terminations provide a direct connection to 100Ω transmission lines. The 9DBL09P1 can be factory programmed with a user-defined power up default SMBus configuration.For information regarding evaluation boards and material, please contact your local IDT sales representative.

Download 9DBL0941BKILFT Model

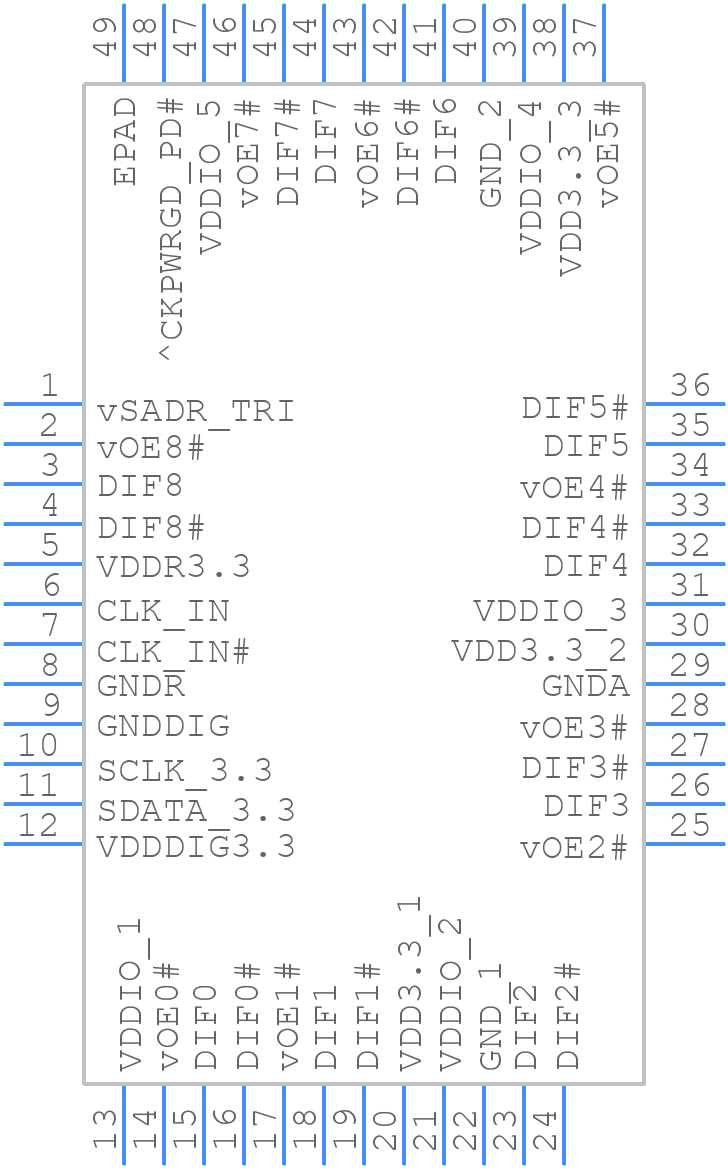

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL0941BKILFT - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P2
click to zoom
3D Models
9DBL0941BKILFT - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG48P2
click to zoom

9DBL0941BKILFT Details

  • Manufacturer Part Number:

    9DBL0941BKILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P2

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DBL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    40 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

9DBL0941BKILFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4333EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the device. This information can be found in the device's user manual (R01UM4640EU0100) or by contacting Renesas support directly.
  • The 9DBL0941BKILFT has a high power dissipation rating, so thermal management is crucial. Renesas recommends using a heat sink, thermal interface material, and ensuring good airflow around the device. More detailed information can be found in the device's thermal design guide (R01AN4334EU0100).
  • The 9DBL0941BKILFT is not specifically designed or tested for radiation-hardened applications. If radiation hardness is required, Renesas recommends using their radiation-hardened products or consulting with their support team for guidance.
  • Renesas recommends using a high-quality clock signal with minimal jitter and noise to ensure proper operation of the device. A clock signal with a jitter of less than 100 ps and a signal-to-noise ratio (SNR) of at least 40 dB is recommended.
