9DBL411BGILF - Renesas Electronics

Description: The 9DBL411 is a four output lower power differential buffer. Each output has its own OE# pin. The device has a maximum operating frequency of 150MHz.

Download 9DBL411BGILF Model

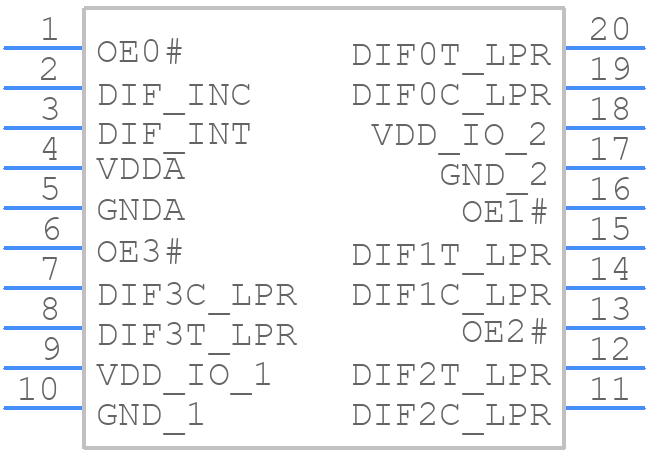

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DBL411BGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin TSSOP, 173 Mil. Narrow Body
click to zoom
3D Models
9DBL411BGILF - Renesas Electronics  - 3D model - Small Outline Packages - 20-pin TSSOP, 173 Mil. Narrow Body
click to zoom

9DBL411BGILF Details

  • Manufacturer Part Number:

    9DBL411BGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Family:

    5V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inverted Outputs:

    4

  • Number of Terminals:

    20

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

9DBL411BGILF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 9DBL411BGILF is -40°C to +85°C.
  • The clock settings for the 9DBL411BGILF can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and configuration options.
  • The maximum frequency for the 9DBL411BGILF's CPU is 100 MHz.
  • The 9DBL411BGILF has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the System Clock Controller (SCC). Refer to the user manual for specific register settings and configuration options.
  • The 9DBL411BGILF has a maximum of 128 KB of flash memory available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

9DBL411BGILF Overview

Use the download button to access the 9DBL411BGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9DBL4, or try a keyword search, such as Clock Drivers

Parts related to 9DBL411BGILF

Showing 0 results

9DBL411BGILF Alternates

Showing results

Image Part Number Model
Part Image 9DBL411BGILFT Renesas Electronics Corporation

Low Skew Clock Driver, 5V Series, 4 True Output(s), 4 Inverted Output(s), PDSO20

Part Image 9DBL411BGILFT Integrated Device Technology Inc

Low Skew Clock Driver, 5V Series, 4 True Output(s), 4 Inverted Output(s), PDSO20

Part Image 9DBL411BGILF Integrated Device Technology Inc

Low Skew Clock Driver, 5V Series, 4 True Output(s), 4 Inverted Output(s), PDSO20

Part Image 9DBL411BGLFT Integrated Device Technology Inc

Low Skew Clock Driver, 5V Series, 4 True Output(s), 4 Inverted Output(s), PDSO20

Part Image 9DBL411AGLFT Renesas Electronics Corporation

Low Skew Clock Driver, 9DBL Series, 4 True Output(s), 0 Inverted Output(s), PDSO20

For a full list of alternate parts for 9DBL411BGILF, check out Findchips.com
