Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0034). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
The 9DBV0231AKILF has a thermal pad on the bottom, which requires a thermal interface material (TIM) to dissipate heat efficiently. Ensure good thermal contact between the device and the heat sink or PCB. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize your design.
The input clock signal should meet the specifications outlined in the datasheet, including frequency, amplitude, and jitter tolerance. Additionally, ensure the clock signal is clean and free from noise, and consider using a clock buffer or jitter attenuator if necessary.
The 9DBV0231AKILF has various power-saving modes, such as standby and sleep modes. Consult the datasheet and application notes for specific configuration details, including register settings and pin control. Additionally, consider using power gating and dynamic voltage and frequency scaling to minimize power consumption.
The internal PLL settings depend on the specific application and clocking requirements. Consult the datasheet and application notes for recommended settings, including PLL multiplication factors, loop filter components, and lock detection settings. It's essential to optimize the PLL settings for your specific use case.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBV0231AKILF Overview

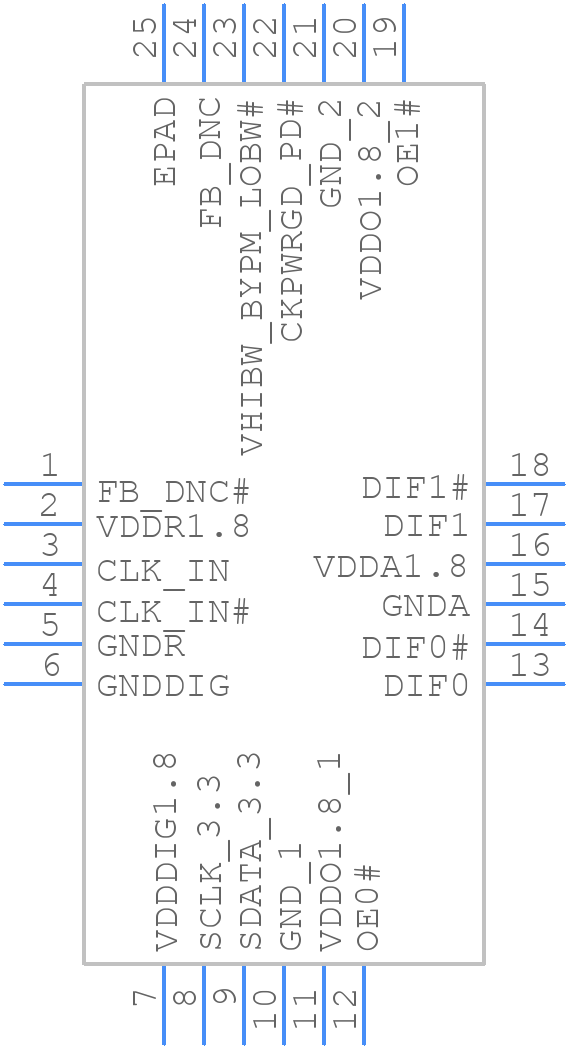

Use the download button to access the 9DBV0231AKILF schematic symbol, PCB footprint, and 3D model.
