Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG0034). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
The 9DBV0231AKILFT has a thermal pad on the bottom, which requires a thermal interface material (TIM) to dissipate heat efficiently. Ensure a good thermal connection to a heat sink or a metal core PCB. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize your design.
The input clock signal should meet the specified frequency, amplitude, and jitter requirements. Renesas recommends using a high-quality clock source with a frequency accuracy of ±50 ppm and a jitter of <100 ps. Additionally, ensure the clock signal is properly terminated and routed to minimize noise and reflections.
To achieve low-power operation, configure the device to use the lowest possible frequency, disable unused features, and adjust the voltage regulator settings. Renesas provides power-saving modes and guidelines in their datasheet and application notes. Consult these resources to optimize power consumption for your specific application.
To ensure EMC and minimize EMI, follow Renesas' guidelines for PCB layout, component placement, and shielding. Use a metal shield or a shielded enclosure, and consider using EMI filters or common-mode chokes on the input/output lines. Additionally, ensure proper grounding and decoupling to reduce noise and radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9DBV0231AKILFT Overview

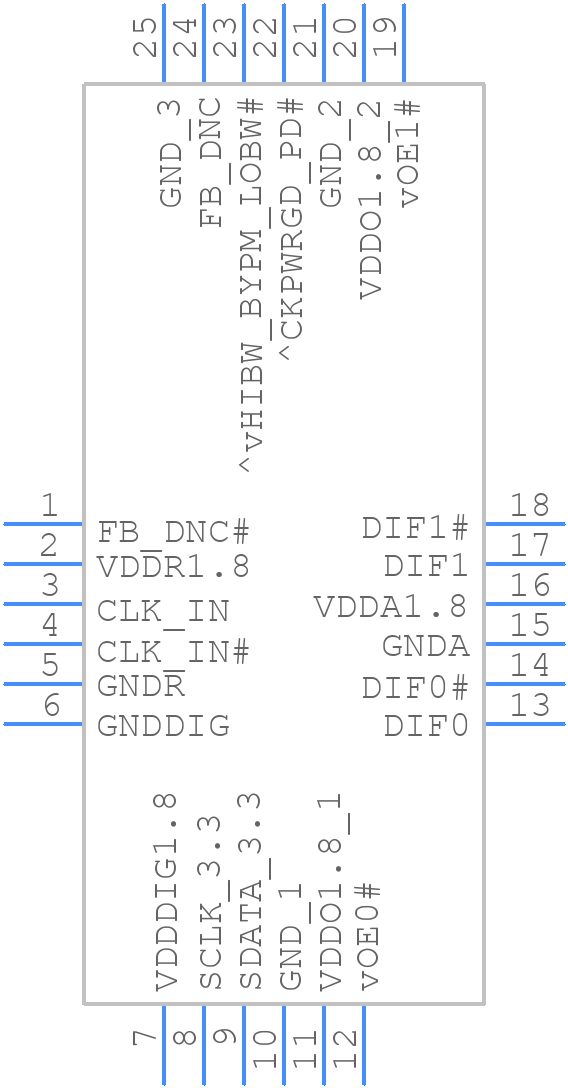

Use the download button to access the 9DBV0231AKILFT schematic symbol, PCB footprint, and 3D model.
